555 Time-Base Circuit Main Parameters Circuit

Published:2011/7/7 8:19:00 Author:Robert | Keyword: Time-Base, Main, Parameters | From:SeekIC

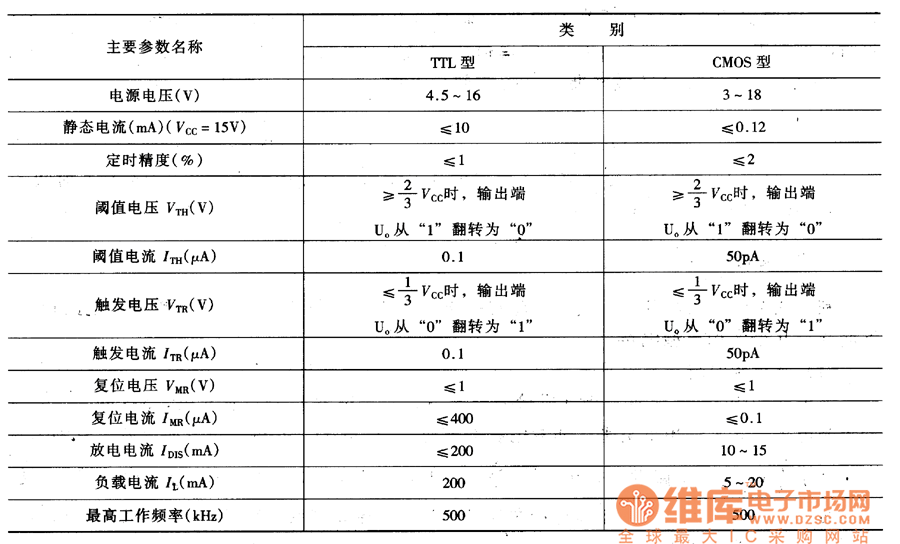

For correctly using the 555 time-base circuit, we should know about its main parameters. The TTL type and CMOS type 555 time-base circuits have difference in their features and parameters. So this table listed their main parameters separately to be used for reference. For dual time-base circuit, the parameters are all the same with the single time-base circuit's except for the its doubling quiescent current. So it can be used by taking the single time-base circuit's main parameters as the reference. The table shows the 555 time-base circuit's main features and parameters.
