555 quickly resistance measuring circuit

Published:2011/4/27 3:32:00 Author:Ecco | Keyword: 555 , quickly , resistance, measuring | From:SeekIC

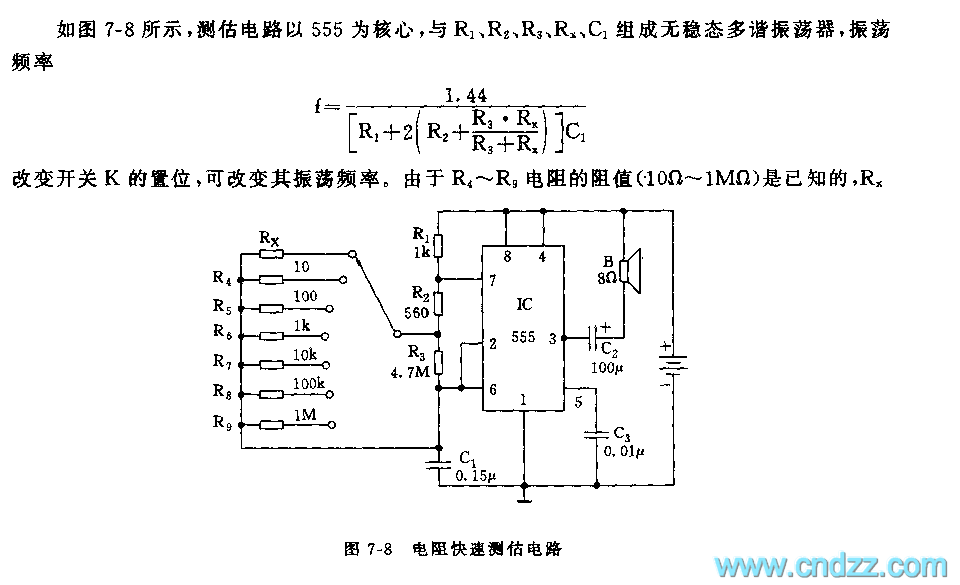

As shown in Figure 7-8, measuring circuit uses 555 as the core, and 555,R1, R2, R3, Rx, C1 form an astable multivibrator. Changing the switch K can change the oscillation frequency. Since R4 ~ R9 resistor (10Ω ~ 1MΩ) is known, Rx is the resistance under test,it caneasily and quickly determine the resistance of Rx by the comparison of the sound with correspondingoscillation frequency of known resistors.
