Momentary Switch with 555

Published:2013/3/27 4:20:00 Author:Ecco | Keyword: Momentary Switch , 555 | From:SeekIC

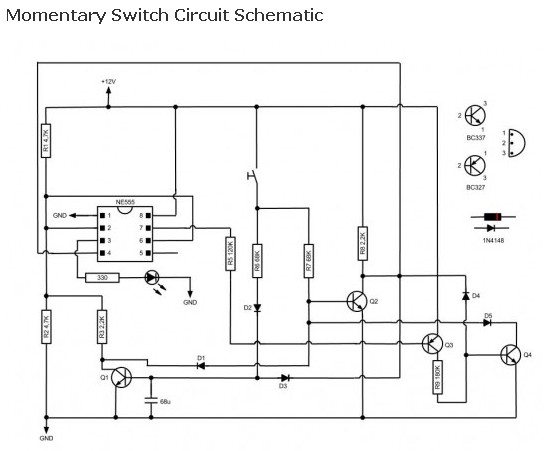

Based on NE555 this circuit turns on and off the IC output by a momentary switch. In other words it works as a mechanical latching relay, but the circuit backs to the start condition when you switch off the power supply. This feature is often required in automotive devices. No relay contacts are used, infact I connected the output to a led.
