SQUARE_WAVE_GENERATOR_USING_A_555_TIMER

Published:2009/7/6 7:12:00 Author:May | From:SeekIC

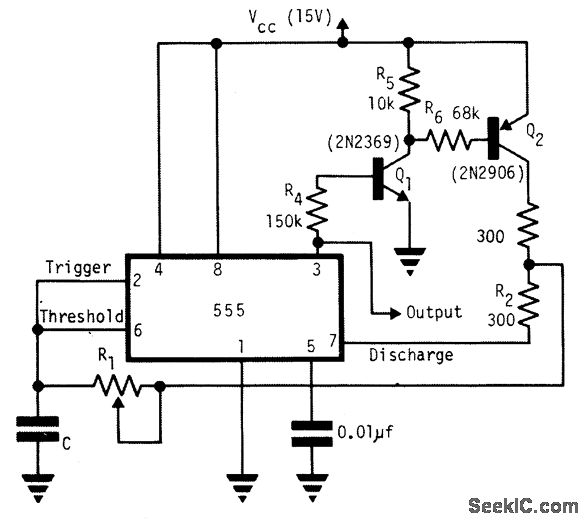

A single timing resistor ensures that the output is a square (50% duty cycle) wave at at all frequency settings.
