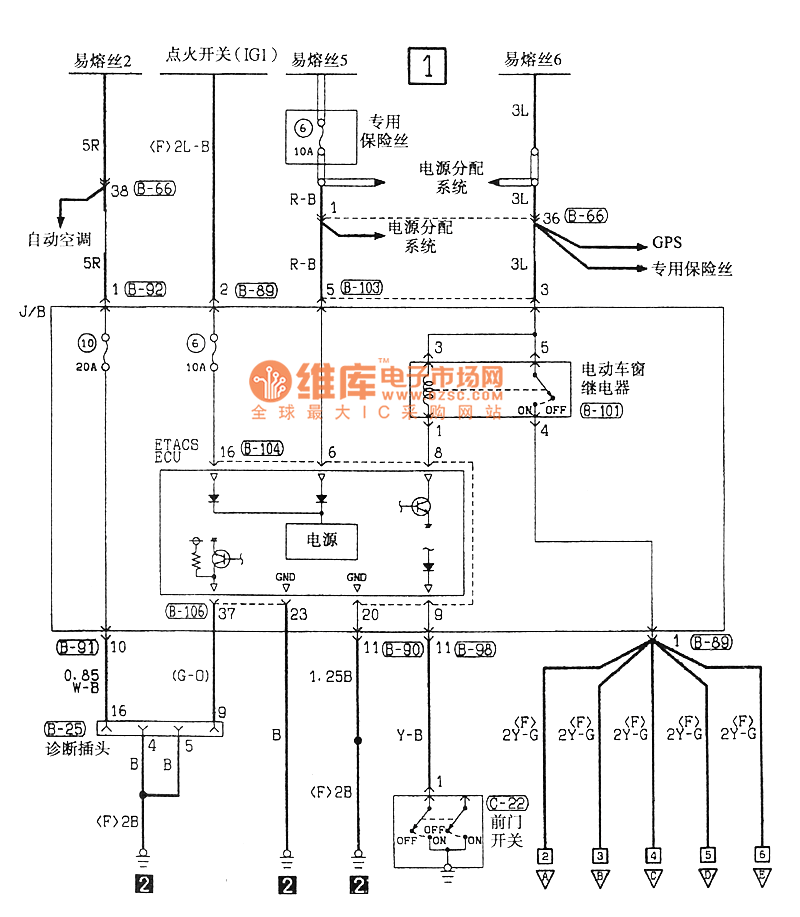

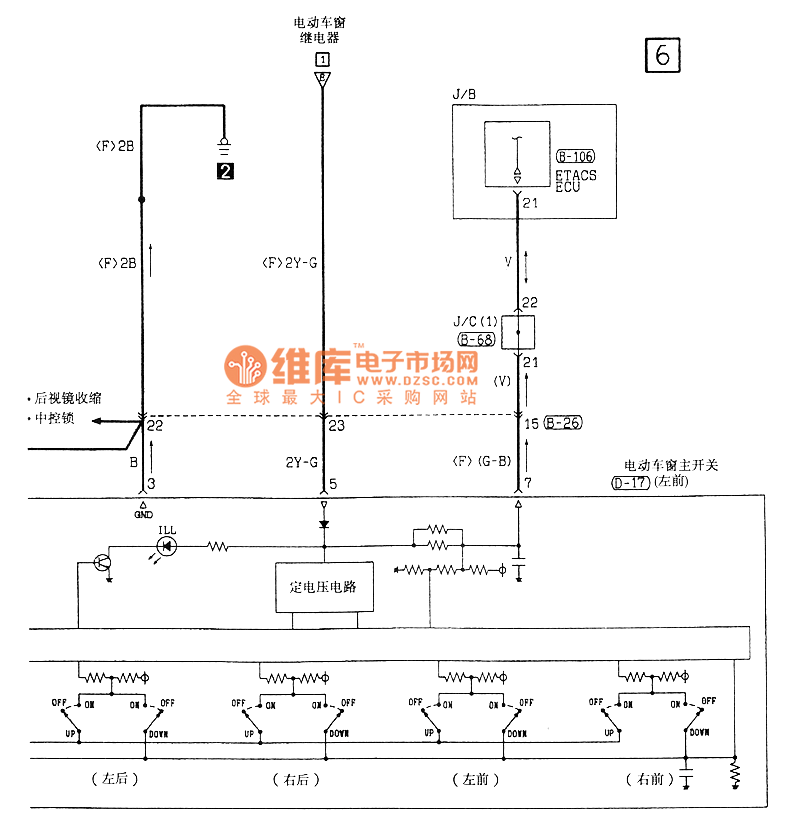

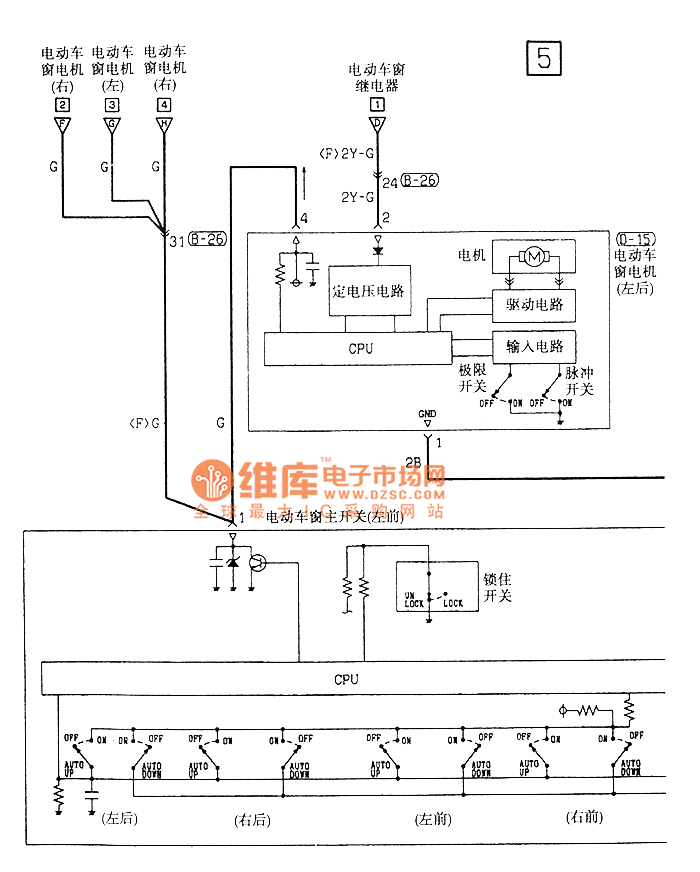

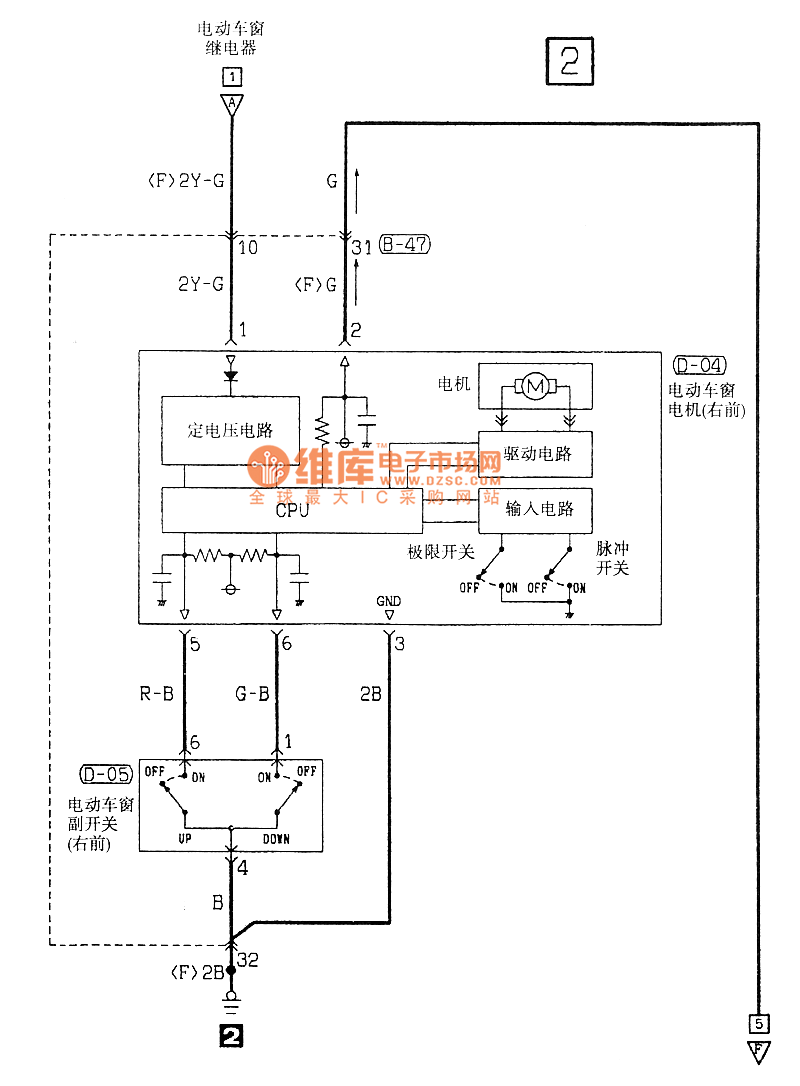

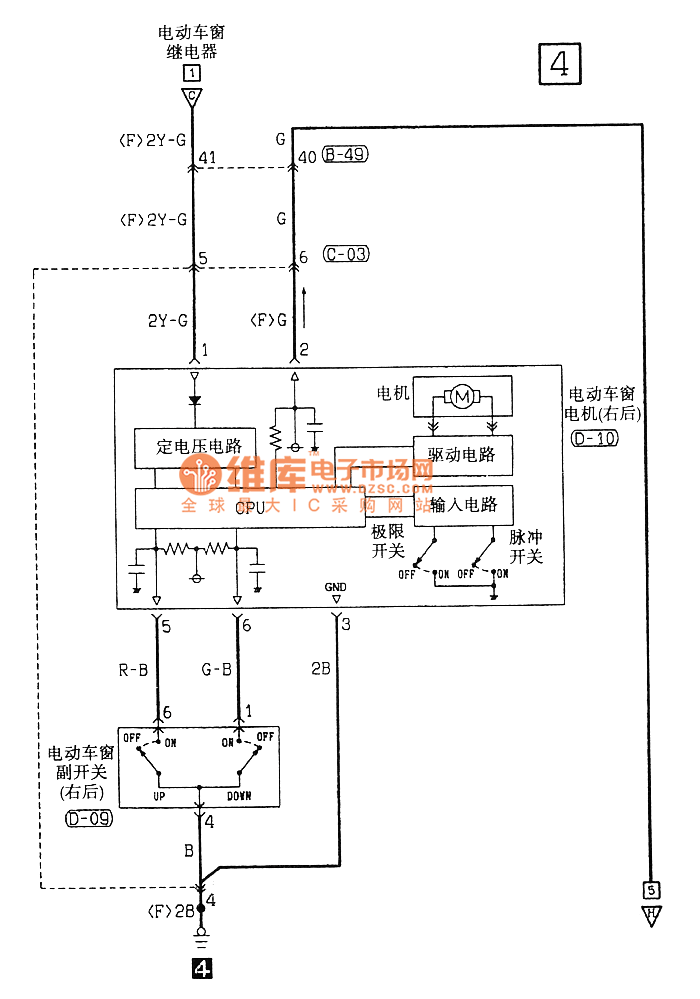

Southeast Soveran power window electrical system circuit

Published:2011/7/12 8:30:00 Author:John | Keyword: power window, electrical system | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/555_Circuit/Southeast_Soveran_power_window_electrical_system_circuit.html

Print this Page | Comments | Reading(3)
