The Power Supply, Starting and Ignition Circuit of Mazda 929

Published:2011/5/9 23:39:00 Author:Borg | Keyword: Power Supply, Ignition | From:SeekIC

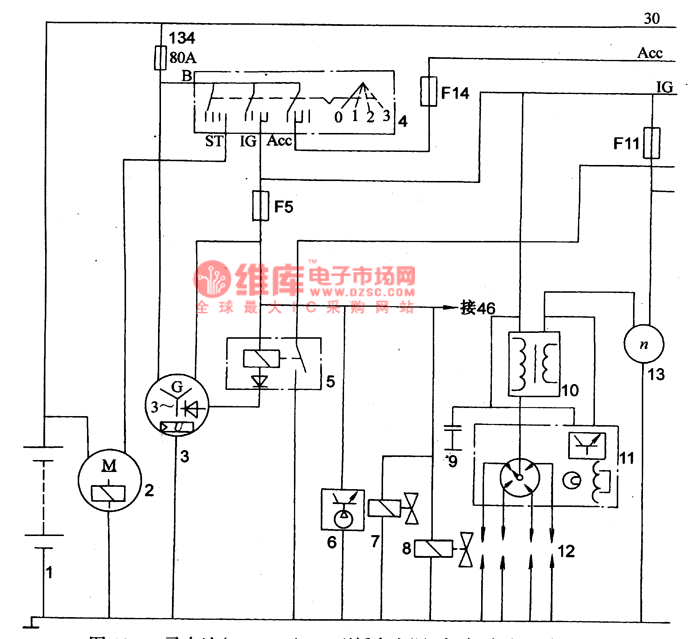

The outside size of Mazda 929 produced by Mazda Motor Corporation of Japan: 4700mm(length)*1690mm(width)*1420mm(height),4 passengers, curb weight:1160kg, total mass:1460kg. It is equiped with a four-stage carburettor petrel engine of FE type which is installed with water-cooling single overhead camshafts, which has a spherical combustion chamber, and the diameter of its air cylinder is 86mm, piston stroke 86mm,emmission 1998ml, compression ratio∑=8.6,maximum power of the engine 72kW/5600rpm, max Nm 156N.m/3700rpm and idle speed 800~85Orpm. 1. Circuit Diagram
