10_Hz_TO_10_kHz_V_F

Published:2009/6/30 3:29:00 Author:May | From:SeekIC

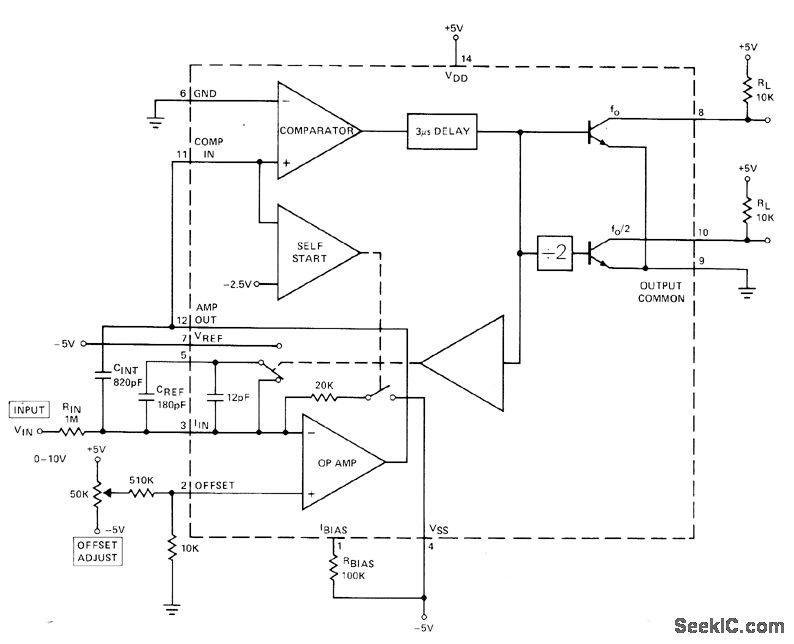

External circuit shown for Teledyne 9400 Voltage-to-frequency converter provides means for trimming zero location and full-scale frequency value of output For 10-kHz full-scale value, set Vin to 10 mV and trim with 50K offset adjust pot to get 10-Hz output, then set V1, to 10.000 V and trim either Rin, VREF, or CREF to obtain 10-kHz output.—M. 0. Paiva, Applications of the 9400 Voltage to Frequency Frequency to Voltage Converter, Teledyne Semiconductor, Mountain View, CA, 1978, AN-10, p 3-5.
