10_bit_D_A_converter_connected_for_four_quadrant_multiplication_

Published:2009/7/20 4:17:00 Author:Jessie | From:SeekIC

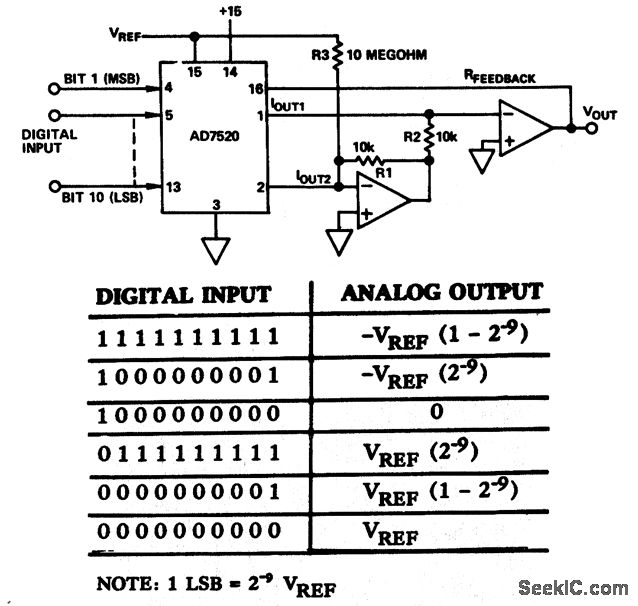

10-bit D/A converter connected for four-quadrant multiplication (courtesy Analog Devices, Inc.).
