1296_MHz_TO_285_MHz

Published:2009/7/16 3:34:00 Author:Jessie | From:SeekIC

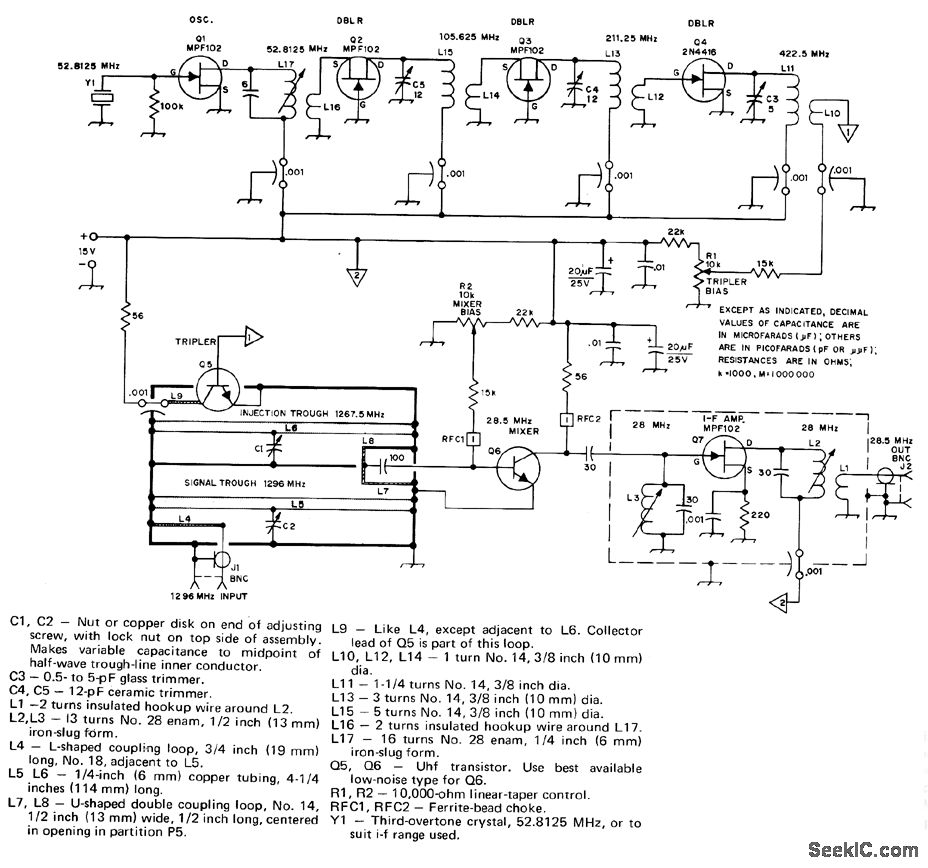

Uses UHF transistors in active mixer and in final stage of injection chain, for lower noise figure and useful conversion gain. Doubler and tripler stages are individually shielded. -L. Crutcher, An Active-Mixer Converter for 1296 MHz, QST, Aug. 1974, p 11-14.
