FET_TRIANGLE_TO_SINE_CONVERTER

Published:2009/7/6 22:18:00 Author:May | From:SeekIC

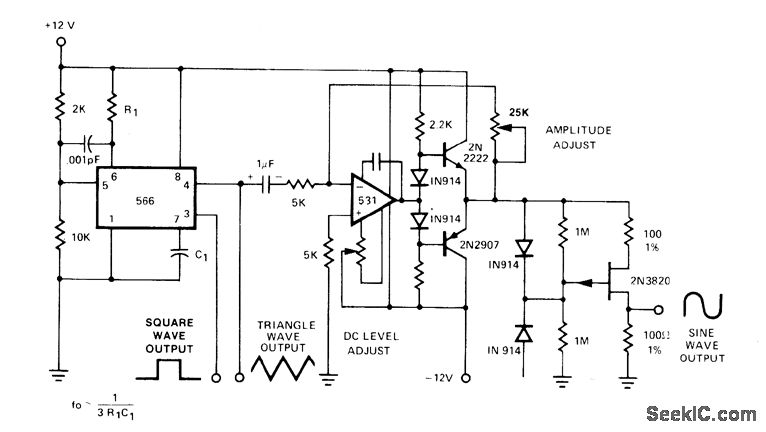

Use of nonlinear transfer characteristic of P-channel junctidn FET to shape triangle outρut of 566 function generator gives sine wave having less than 2% distortion. Amplitude of triangle wave is critical and must be carefully adjusted for minimum distortion of slne output.－''Signetics Analog Data Manual,''Signetics,Sunnyvale,CA,1977,p 851－852
