F_V_converter_controlling_power_load

Published:2009/7/20 4:58:00 Author:Jessie | From:SeekIC

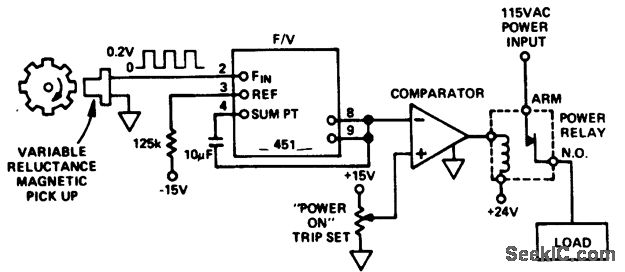

F/V converter controlling power load. The relay remains open until the preset power on trip level is reached (courtesy Analog Devices, Inc.).
