IF_POSITIVE_VSUBREF_SUB_IS_USED

Published:2009/7/20 5:06:00 Author:Jessie | From:SeekIC

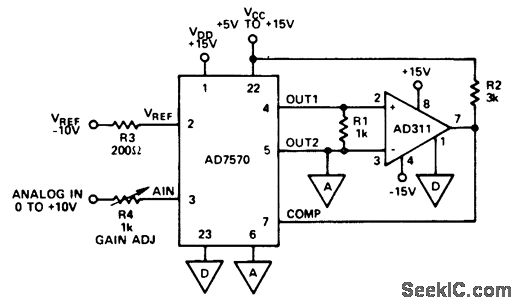

IF POSITIVE VREF IS USED.THE ANALOG INPUT RANGE IA 0 TO-VREF,AND THE COMPARTOR'S㈠ INPUT SHOULD BE CONNECTED TO OUT1(PIN 4) OF THE AD7570.
