Interfacing_D_A_converters_with_digital_logic_families

Published:2009/7/24 9:54:00 Author:Jessie | From:SeekIC

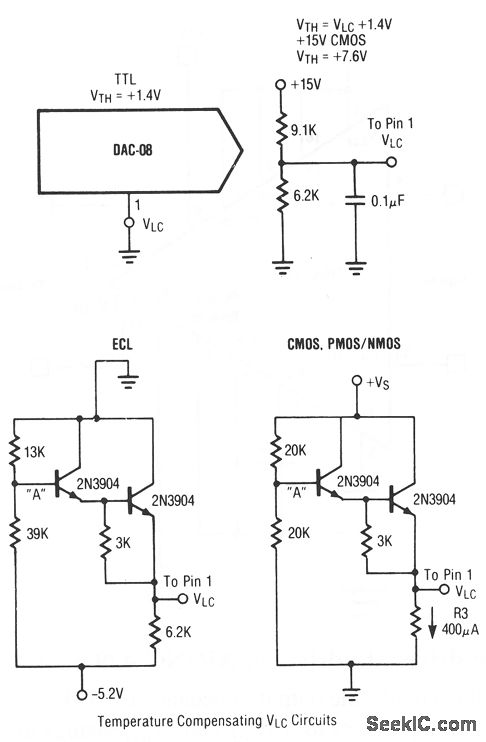

This circuit shows the interface circuits that are required to interface a typical TTL DAC with ECL,CMOS, PMOS, and NMOS digital devices. Raytheon Linear Integrated Circuits, 1989, p. 6-15.
