LOW_FREQUENCY_CONVERTER

Published:2009/6/23 1:35:00 Author:May | From:SeekIC

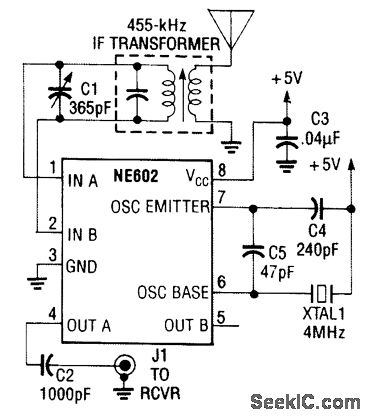

This converter circuit translates the 350-to 500-kHz range to 4.35 to 4.50 MHz，enabling thefrequency range to be received on a conventionalshortwave recelver
