Symmetrical_offset_D_A_converter

Published:2009/7/23 21:51:00 Author:Jessie | From:SeekIC

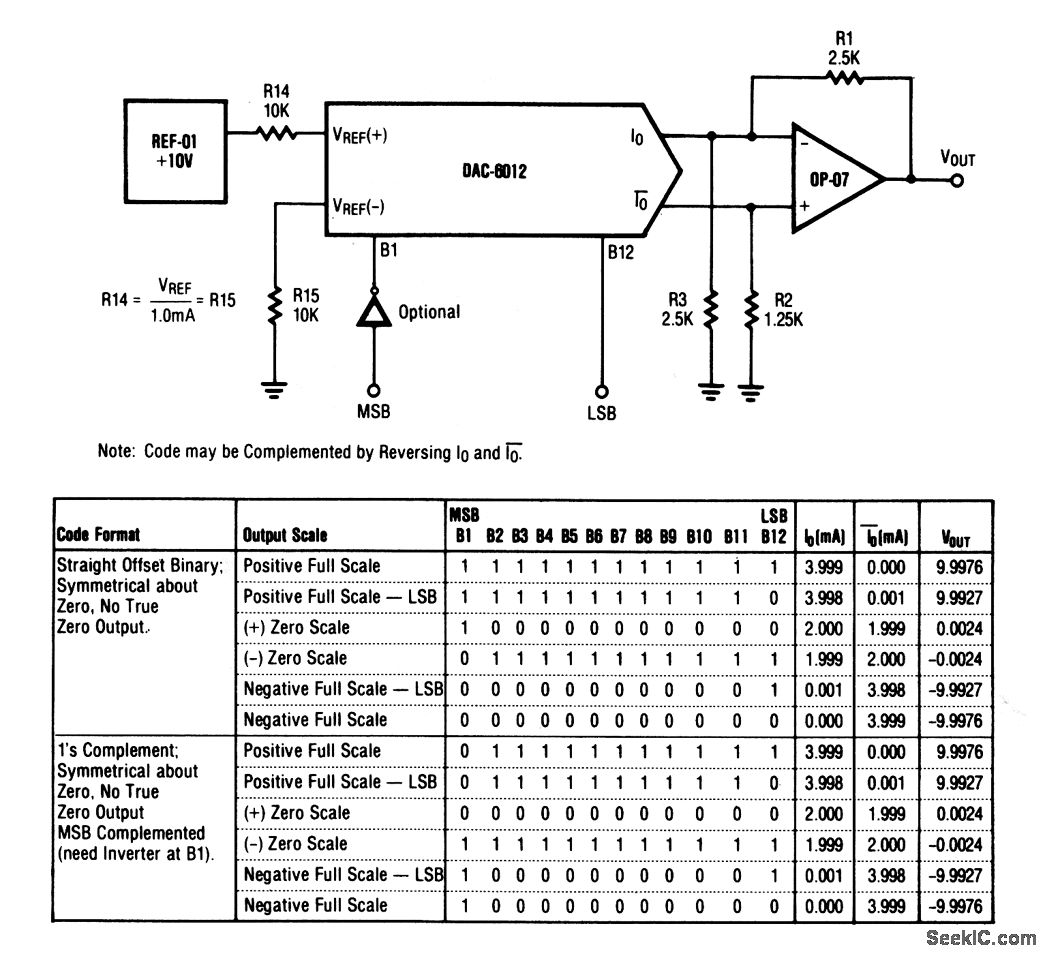

This circuit shows a DAC/op-amp combination that is used to provide symmetrical-offset operation. Full-scale adjustment can be made as shown in Fig.6-39B.
