100W amplifier circuit diagram with DC 500KHZ

Published:2012/7/11 2:19:00 Author:Ecco | Keyword: 100W , amplifier , DC 500KHZ | From:SeekIC

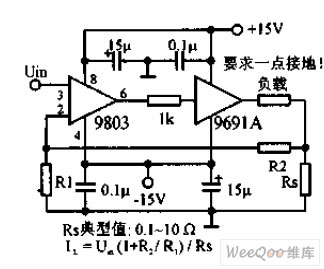

The 100W amplifier with DC 500KHzuses the features of high input impedance , high gainofa photoelectric op amp to make output power be 100W. Load current can be up to 10A, and it requires high current wiring and capacitance power supply bypass . This circuit is used for high - fidelity audio circuits, cathode-ray deflection and servo system.
