10_MHz_DUAL_CHANNEL_LOGAMP

Published:2009/7/14 3:55:00 Author:May | From:SeekIC

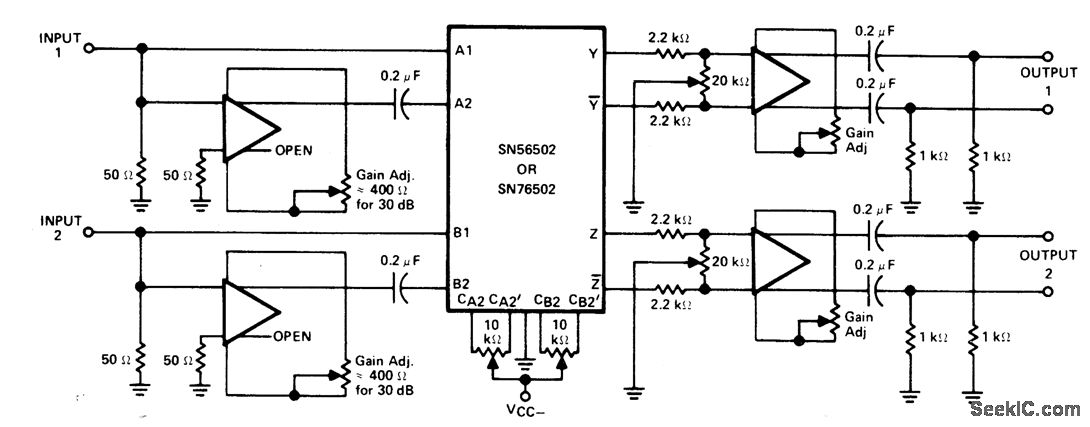

Circuitusing Texas Instruments SN56502 or SN76502 in combination,with four SN52741 oρamps、will handle 50-dB input range perchannel at all frequecies uρ to10 MHz suitable for data compression, analog computation, radar and infrared detection systems, and weapons systems. Differential output voltage levels are generally less than 0.6 V. Output swing and slope of output response are adjusted by varying gain in each channel. Coordinate origin is adjusted with offset pots of output buffers.- The Linear and Interface Circu its Data Book for Design Engineers, Texas Instruments, Dallas, TX, 1973, p 7-46.
