12_kW_144_MHz_LINEAR_AMPLIFIER

Published:2009/6/18 2:09:00 Author:May | From:SeekIC

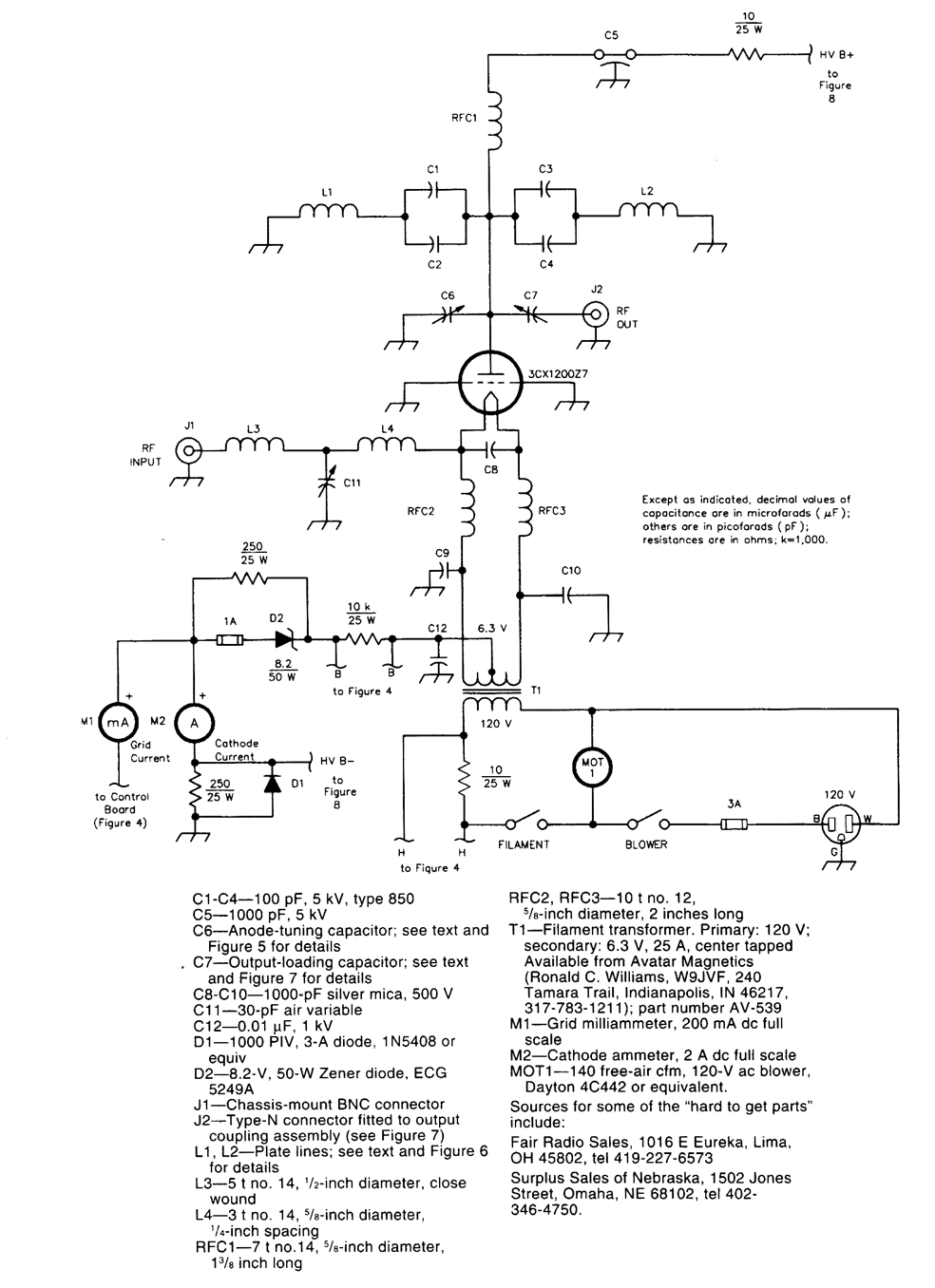

Schematic diagram ofthe 2-meter amplifier
