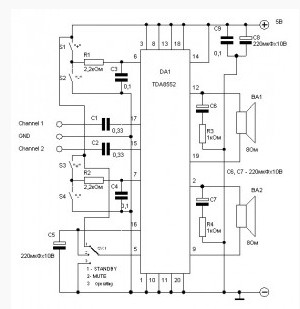

1.4W Stereo Power Amplifier Circuit based TDA8552

Published:2013/3/18 1:55:00 Author:Ecco | Keyword: 1.4W , Stereo Power Amplifier | From:SeekIC

A few more words on the chip. This is a bridge amplifier class AB integrated into the protection against overheating, short circuit protected outputs, suppression of inrush current when you turn on and off the amplifier. The only difference – a little more power output – 1.4 watts per channel. But nevertheless, it also does not require a heat sink and can be used anywhere.
