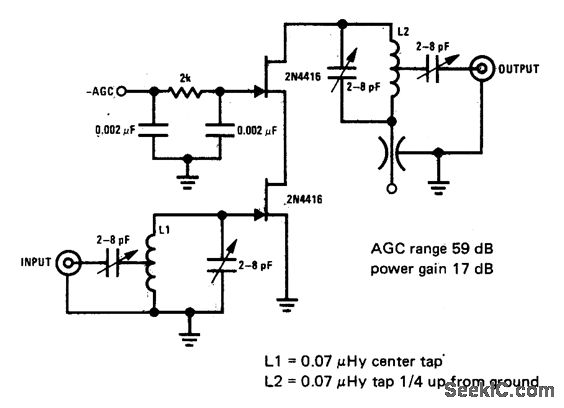

200_MHz_CASCODE

Published:2009/6/25 21:12:00 Author:May | From:SeekIC

JFETs give low cross modulation, large signal-handling ability, and AGC action controlledby biasing upper cascode JFET. Neutralization is not needed.- FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-26-6-36.
