2.6W Two Channel Amplifier based MAX9751

Published:2013/3/18 1:58:00 Author:Ecco | Keyword: 2.6W, Two Channel, Amplifier | From:SeekIC

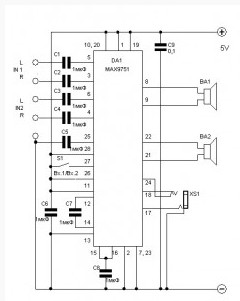

This amplifier circuit based MAX9751 IC which work on the 5 Volt voltage, unipolar, and a 2.6 Watt power output per channel. In addition, there is a headphone output with separate amplifier and the input selector inputs – you can connect two sources of signal.
