28W FM Broadcast Transmitter Amplifier 88-108 MHz

Published:2012/11/11 20:17:00 Author:muriel | Keyword: 28W, FM, Broadcast , Transmitter, Amplifier, 88-108 MHz | From:SeekIC

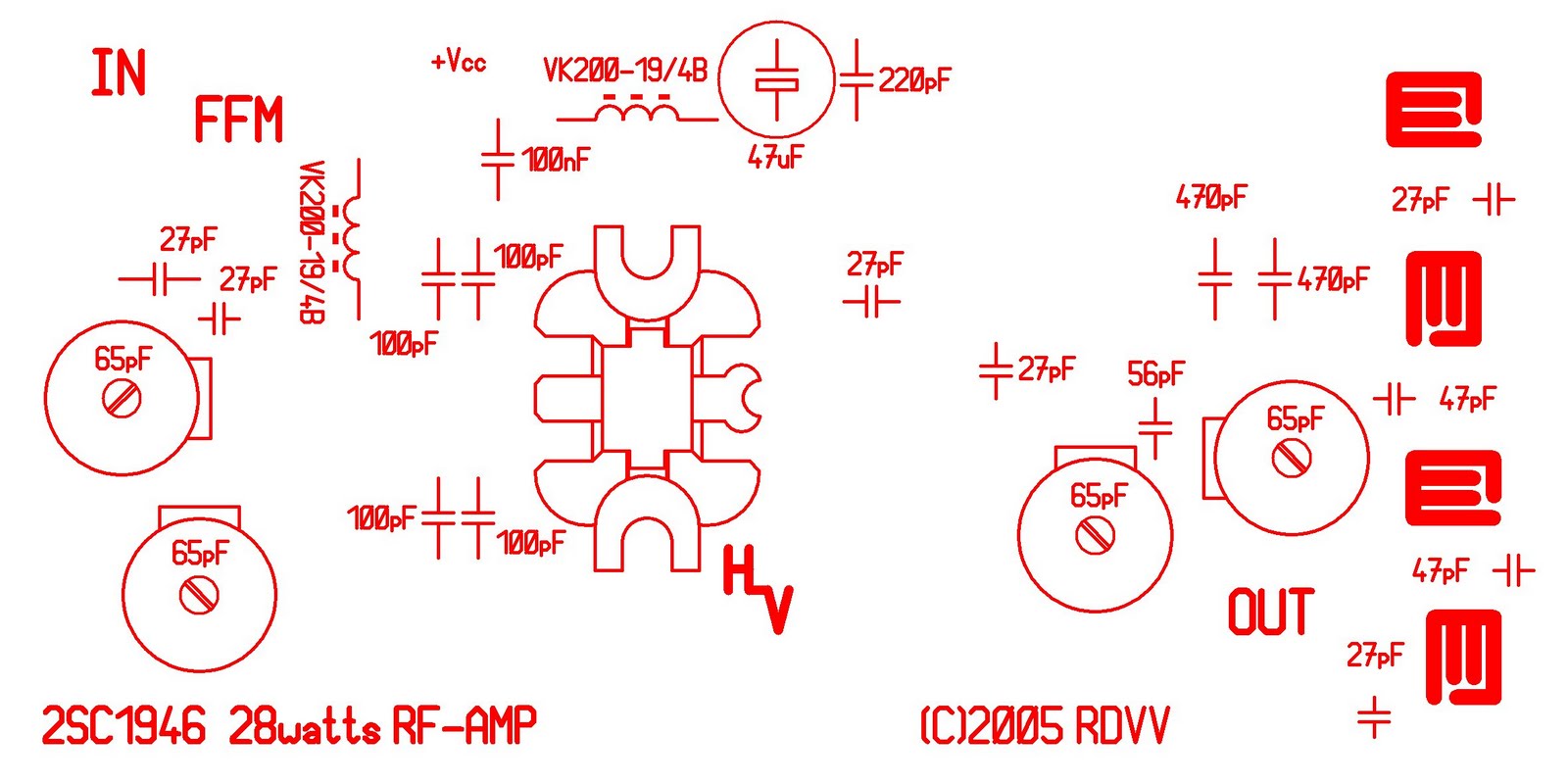

This RF Amplifier designed for FM broadcast using a single 2SC1946 VHF Power Transistor. This 10-30W RF amplifier circuit provides an appropriate power boost with an input of 1-3 watt. Tower are 30 meters high will send signal surrounding air should be around 15 km. The layout of the 2SC1946 28 Watts FM broadcast RF amplifier has been created with Eagle. The pcb outline is 100 x 50 mm (width x height), all bitmaps have a resolution of 600dpi.Use FR-4 single sided photoresist epoxy pcb material for best results.
