400Hz driving circuit

Published:2011/6/20 7:38:00 Author:TaoXi | Keyword: 400Hz, driving circuit | From:SeekIC

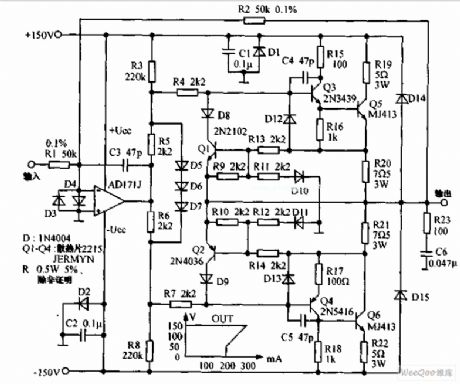

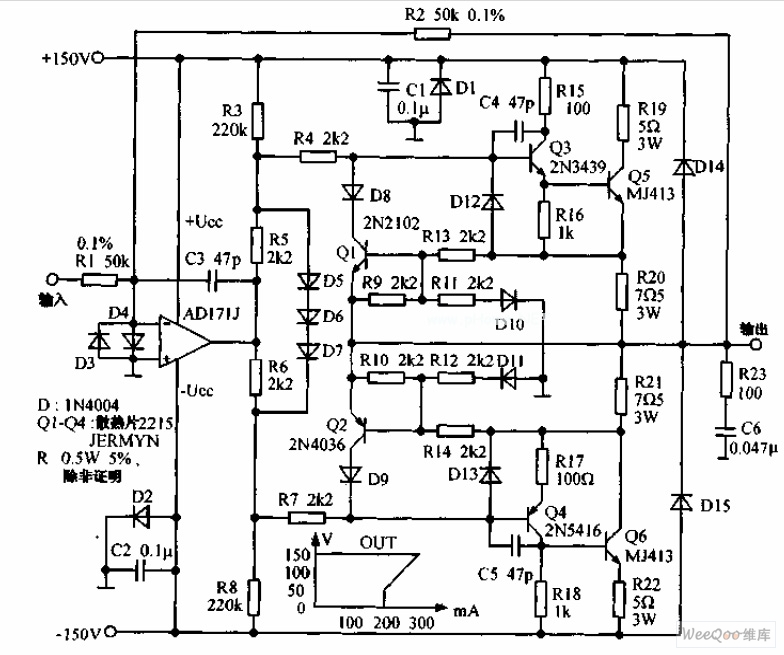

The 400Hz driving circuit can be used to improve the output power of the digital/synchronous transformation system, even if the circuit use the electrical resistance load, it also can get the stable, precise output gain, this circuit has the overcurrent protection function, it can continuously output the 400Hz, 95V RMS voltage to the 500Ω load, the power bandwidth is 50 kHz. When the load current is more than 300mA, the protection circuit will turn the current back to 200mA.
