45_wad_AF_power_amplifier_using_an_ECG1081

Published:2009/7/20 4:52:00 Author:Jessie | From:SeekIC

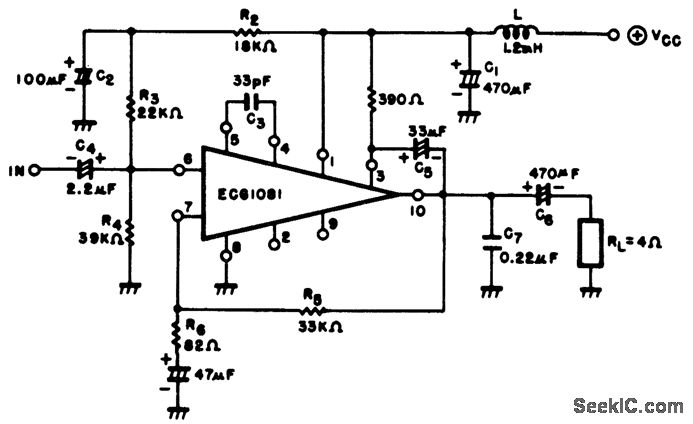

4.5-wad AF power amplifier using an ECG1081. Recommended supply voltage is 13.2 volts, which makes it ideal for automotive applications. Voltage gain at 400 hertz is 50 dB (courtesy GTE Sylvania Incorporated).
