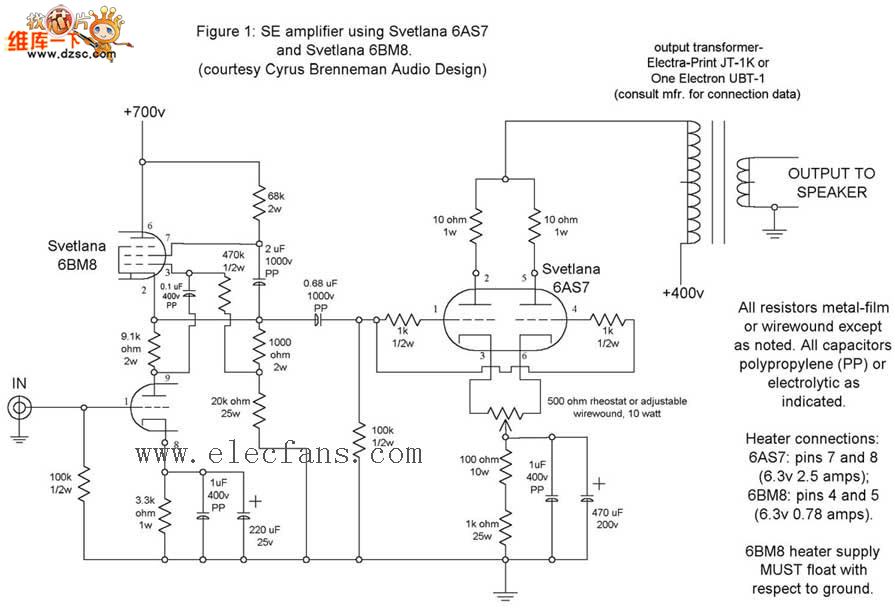

6bm8 6as7 Power amplifier circuit diagram

Published:2011/3/30 21:33:00 Author:Ecco | Keyword: Power amplifier | From:SeekIC

6bm8 6as7 Power amplifier circuit diagram is as below:
