80_MHz_WITH_INPUT_PEAKlNG

Published:2009/6/25 22:41:00 Author:May | From:SeekIC

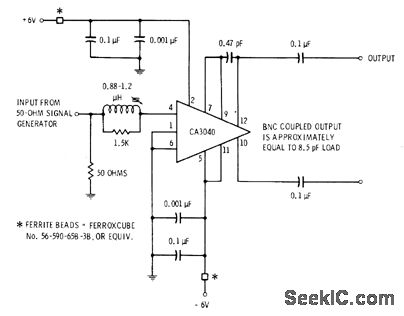

Response of CA3040 video IC is extended beyond 80 MHz in simple circuit that includes adjustable input peaking coil. Response is flatwithin 3 dBto well below t MHz, for gain of about 32 dB.-E. M Noll, Linear IC Principles, Experiments, and Projects, Howard W. Sams, Indianapolis, IN,1974, p163 and 169.
