8W Broadband FM RF Amplifier

Published:2012/11/14 0:34:00 Author:muriel | Keyword: 8W, Broadband , FM, RF Amplifier | From:SeekIC

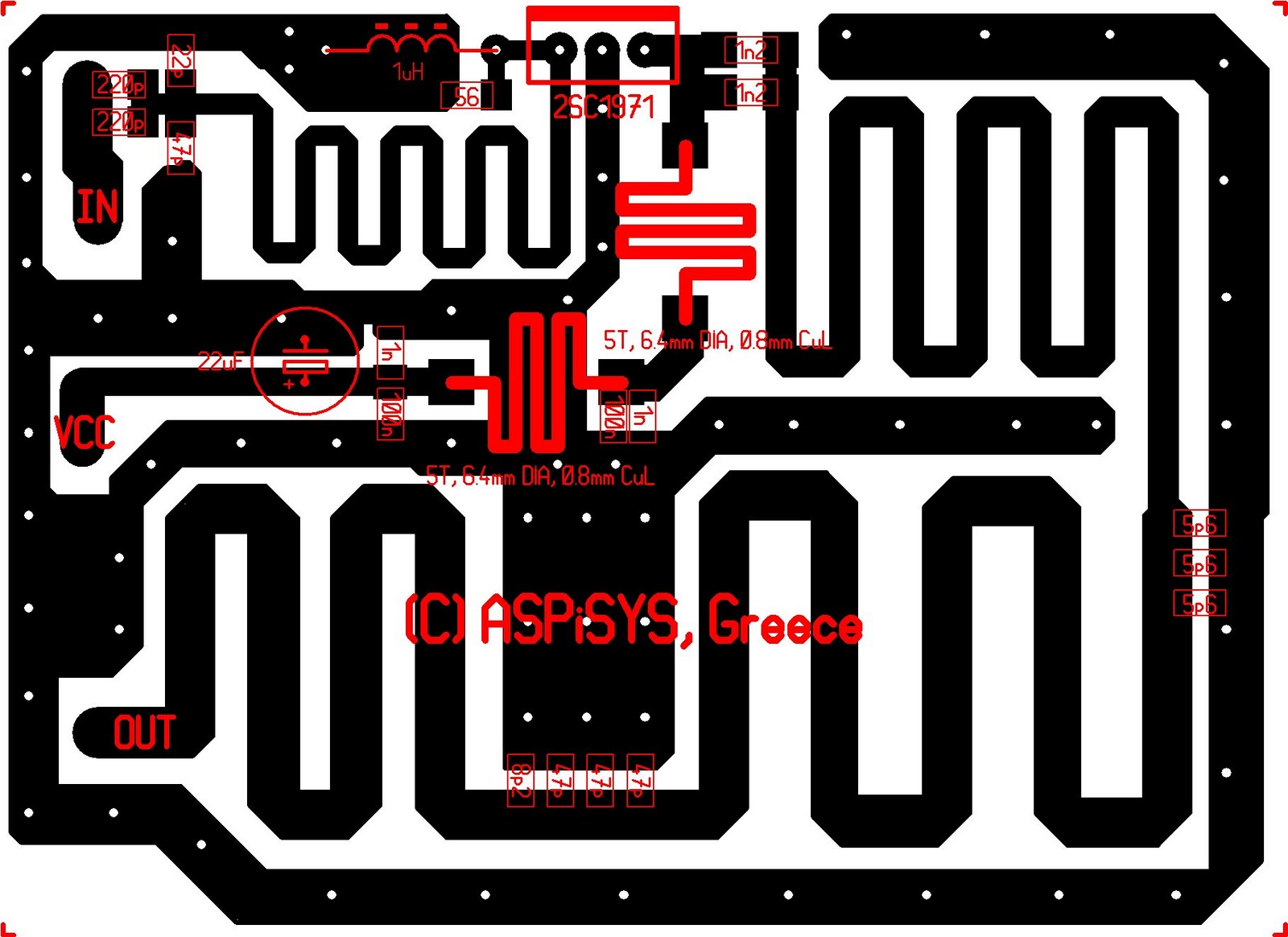

Here's 8W broadband FM RF amplifier using 2SC1971 VHF power transistor. The RF Amplifier PCB layout designed for FM broadband 88-108 MHz transmitters using microstripline technique. This 8W RF amplifier circuit provides an appropriate power boost for transmitters with an input of 500 mW.
