AD585 high-speed precision sampling and maintaining amplifier

Published:2012/8/23 22:15:00 Author:Ecco | Keyword: high-speed, precision , sampling , maintaining, amplifier | From:SeekIC

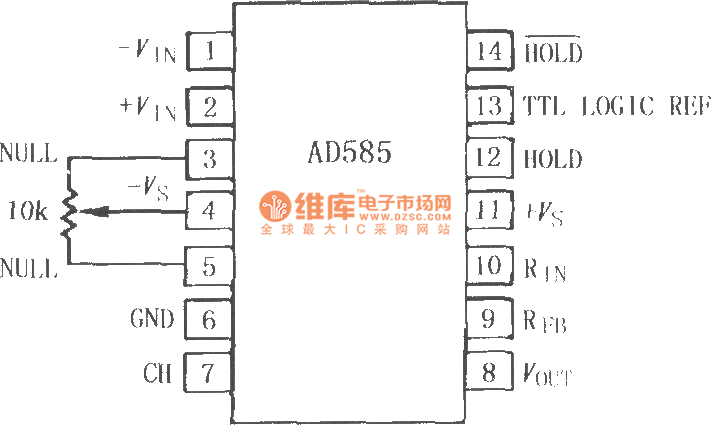

The AD585 is a complete monolithicsampling and maintaining amplifier, including a high-performance operational amplifier series with a very low leakage current switch and a FET input integrated amplifier. The internal holding capacitor and matching applications resistors provide precision and flexibility. The AD585's quick sampling time, low sample-and-hold disorders and fall characteristics make it ideal for high-speed 10 ~ 12bit data acquisition system. The pin configuration is shown as the figure.
