AN7112 power amplifier integrated circuit diagram

Published:2011/5/5 4:18:00 Author:Nicole | Keyword: power amplifier | From:SeekIC

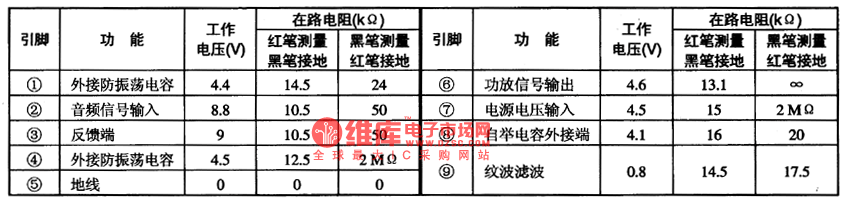

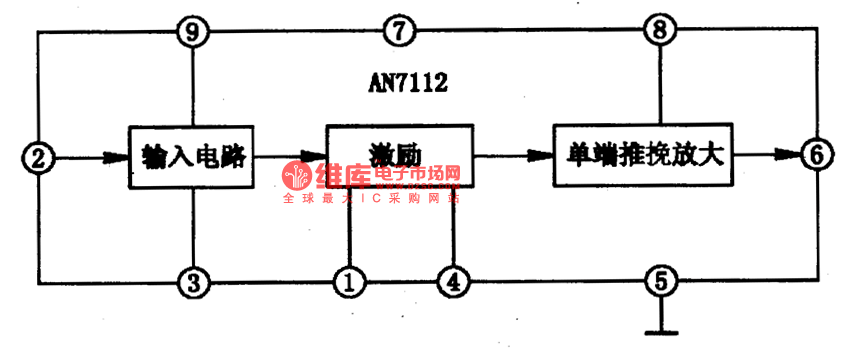

AN7112 is a audio power amplifier integrated circuit which is produced by Panasonic, it is used in 3-5.5 inch miniature TV and computer audio system. 1, internal circuit block diagram AN7112 integrated circuit contains singal input, audio motivation single-ended pull-push amplifier circuit, the integrated block internal circuit block diagram is shown as the figure1. Figure1 is the AN7112 integrated block's internal circuit block diagram 2, pin function and data AN7112 integrated circuit adopts one line ⑨ foot package, the integrated circuit's pin function and data is shown in the excel 1. Excel 1 is the AN7112 integrated circuit's 5 foot function and data.
