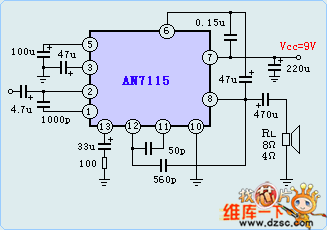

AN7115 audio power amplifier circuit diagram

Published:2012/10/18 22:51:00 Author:Ecco | Keyword: audio power amplifier | From:SeekIC

When Vvv = 9.0V , THD = 10% , RL = 8Ω, the output power of AN7114 can be up to 2.1W, the noise output is 3mV. Limiting parameters: Vcc = 13V, power dissipation (without heat sink ) is 1.2W and 2.25W with radiator. Operating temperature: -20 to 70 ℃. It is suitable for small, portable the closing tape recorders and audio equipment for power amplifier.
