AN8838SB-the integrated RF signal processing integrated circuit

Published:2011/5/17 8:42:00 Author:Borg | Keyword: signal processing, integrated circuit | From:SeekIC

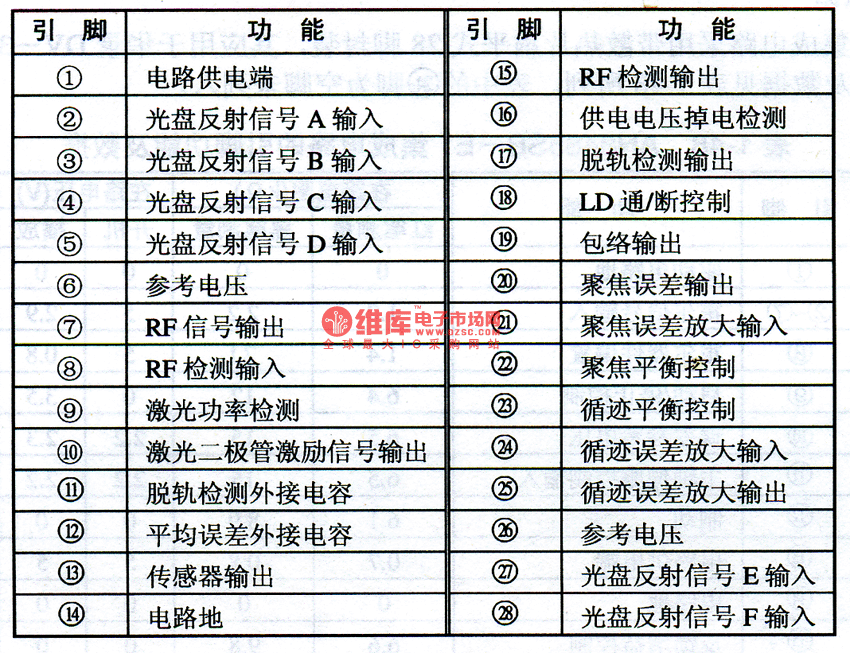

AN8838SB is an integrated RF signal processing integrated circuit produced by Panasonic Corp., Japan, which is widely used in portable VCD players.1.function featuresAN8838SB is a energy-saving RF signal processing integrated circuit, which can shift the disc signals and state signals read out by laser heads into RF signals, in the meantime, it focuses errors and track error signals. The internal circuit of if is in Figure 1. 2.pin functions and dataAN8838SB is in 28-lead USONF package, whose working voltage ranges 2.4V-5.5V, and its pin functions are listed in Table 1.
