10W Amplifier for portable cd players

Published:2013/3/12 1:19:00 Author:Ecco | Keyword: 10W Amplifier , portable cd players | From:SeekIC

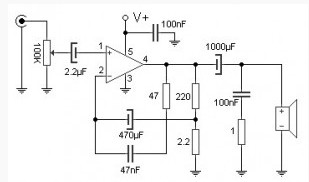

This 10W Amplifier is ideal to drive medium size speakers and use it for a portable CD player or mp3 player. With only one active component of TDA2003 integrated circuit and a single supply source of 8 to 18 volts, this amplifier circuit can provide up to 10W of power to the load which can be between 2 and 8 ohm.
