36 Watt Audio Power Amplifier based on TDA1562Q

Published:2013/3/12 1:31:00 Author:Ecco | Keyword: 36 Watt, Audio Power Amplifier | From:SeekIC

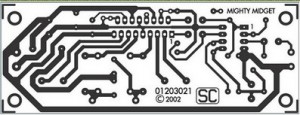

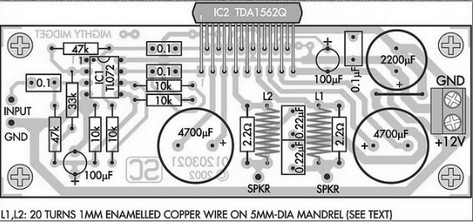

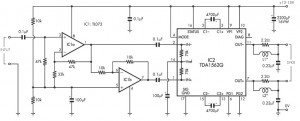

The amplifierbased on theclassHfromPhilipsaudioamplifierIC,itcandeliver36WRMS and 70Wpower music,allfromthe supplyvoltage of13.8V. Thisamplifiercanprovide36WRMScontinuousinto4ohmloadwhen using a13.8Vsupply. However,itisable todeliver70Woutputpowersignal(music)inthe dynamiccondition. As we cansee fromthe drawingsand schematic diagrams,thispowerfulamplifieruses onlyfewpart. As we cansee fromthe schematicdrawingsanddiagrams,thispowerfulamplifieruses onlyfewpart. It is builton aPCBsize104mmx39mm,buteven thoughits sizemay be simple,butnot withhis ability.Thisamplifieralsohas excellentnoise anddistortion. An importantcomponentsof the circuit isan integratedcircuitTDA1562Q”monolithic integratedBridgeTiedLoad (BTL)classHpower amplifierwithhighefficiency.”Formin17-pinpackage “DIL-bent-SIL”plasticandnotonlydesignedfor use incaraudio amplifier and portablePAbut it worksfor network applications,for example,mini/midiaudio componentsandforTV sound. PCB : Technicalfeature:Output power36WRMS:———————-4R70Wmusic power:—————————– 4RFrequency response:28Hztolow———–1dBand 55kHz130mVinput sensitivity:——————— RMS(36Wfor4-ohm)Harmonic distortion:————————– typically0.2% (see charts)SNR95dBunweighted:————————(22Hz to22kHz)
