HALF_WATT_SINGLE_CHANNEL_AUDIO_AMPLIFIER

Published:2009/6/15 21:31:00 Author:May | From:SeekIC

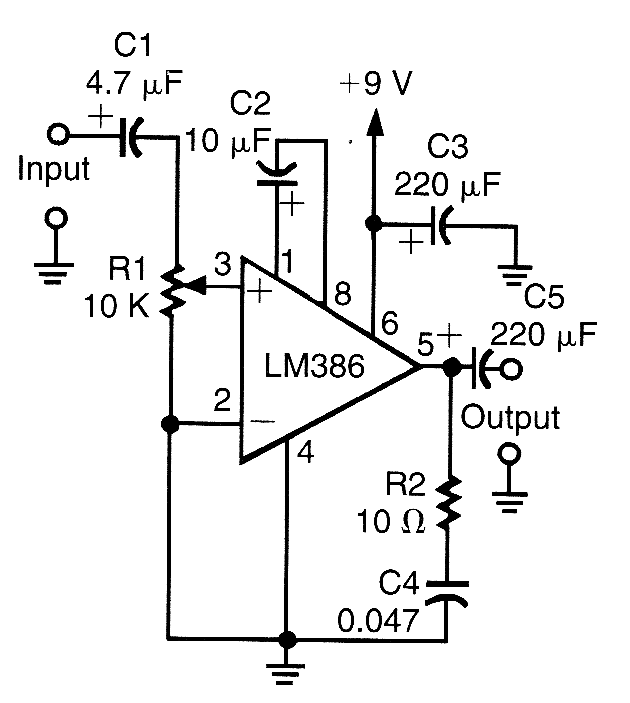

This circuit uses an LM386 IC and will work from 6- to 12-V battery sources. Output is about 0.5 W into 8 Ω.
