Simple LM386 Audio Amplifier

Published:2013/3/25 3:21:00 Author:Ecco | Keyword: Audio Amplifier | From:SeekIC

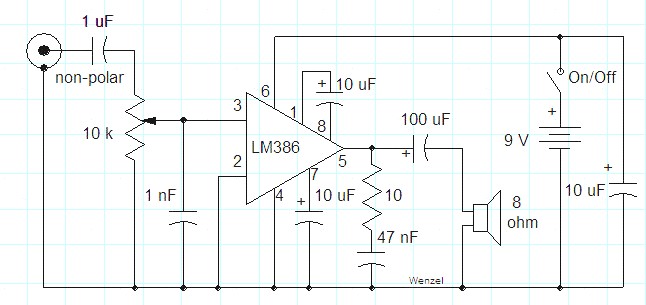

This simple amplifier shows the LM386 in a high-gain configuration (A = 200). For a maximum gain of only 20, leave out the 10 uF connected from pin 1 to pin 8. Maximum gains between 20 and 200 may be realized by adding a selected resistor in series with the same 10 uF capacitor. The 10k potentiometer will give the amplifier a variable gain from zero up to the maximum.
