BA3304F-the integrated circuit of 2-channel audio preamplifiers

Published:2011/5/15 5:38:00 Author:Borg | Keyword: integrated circuit, 2-channel, audio preamplifiers | From:SeekIC

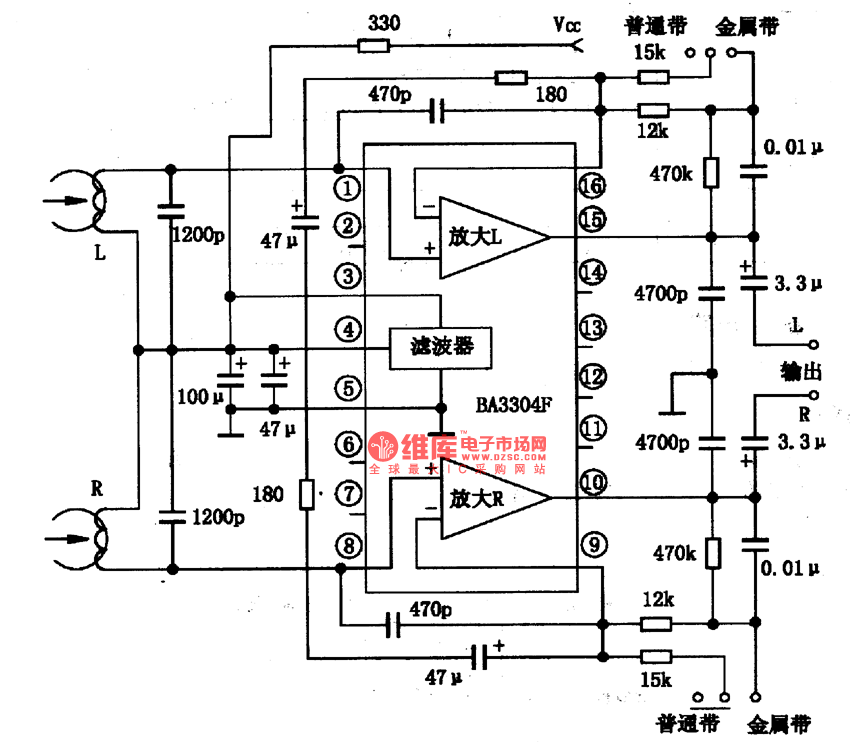

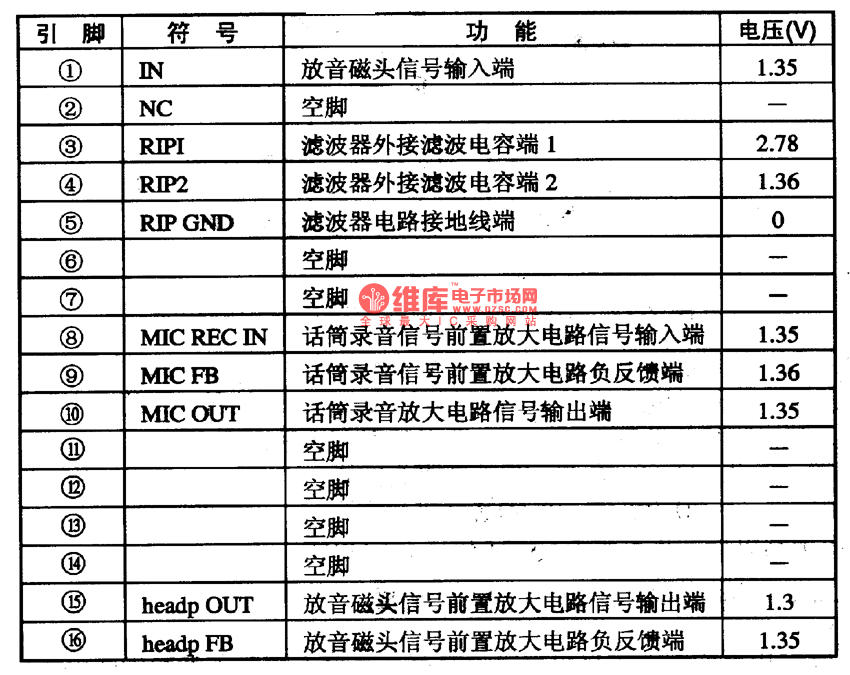

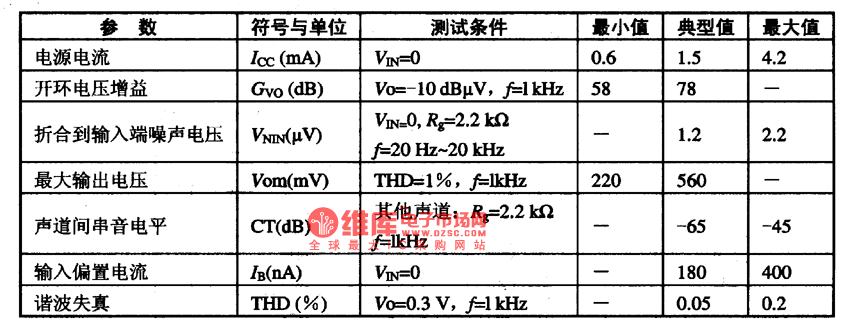

BA3304F is an integrated circuit of 2-channel audio preamplifiers produced by Toyo Power Tool Corp., Japan, which is used in miniature stereo players.1.the internal circuit and pin functions of BA3304FBA3304F consists of two teams of sub-circuits of preamplifiers and frequecy compensation, and filters, etc. Figure 1 is the internal circuit and typical application circuit. And the IC is in flat 16-lead dual line packages, whose pin functions and data are listed in Table 1. 2.main parameters of BA3304F
