BA3406AL-the integrated dual preamplifier reproducing circuit

Published:2011/5/15 5:04:00 Author:Borg | Keyword: preamplifier, reproducing circuit | From:SeekIC

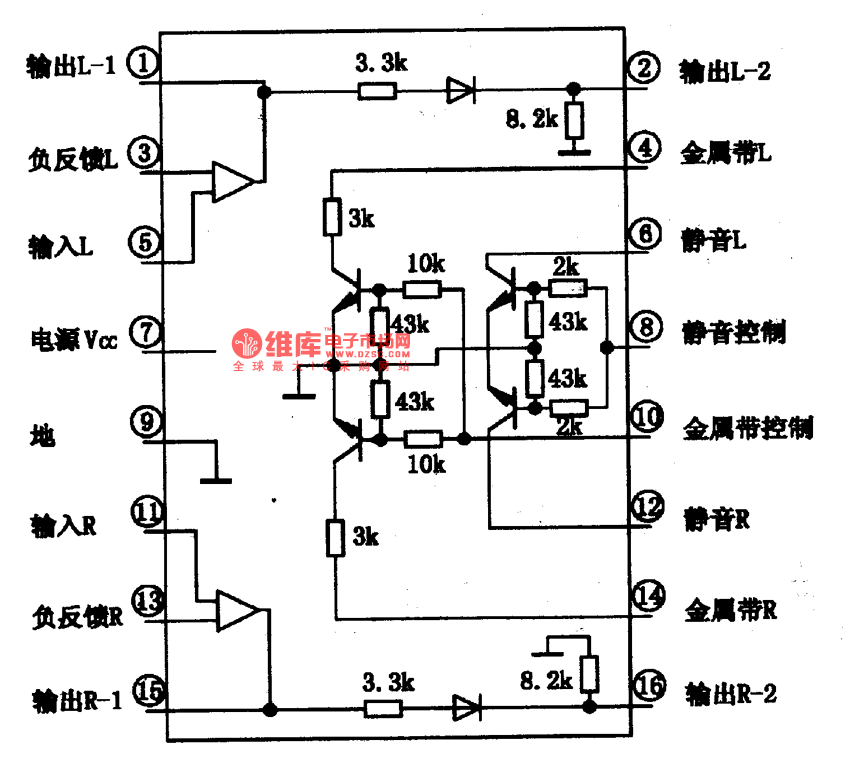

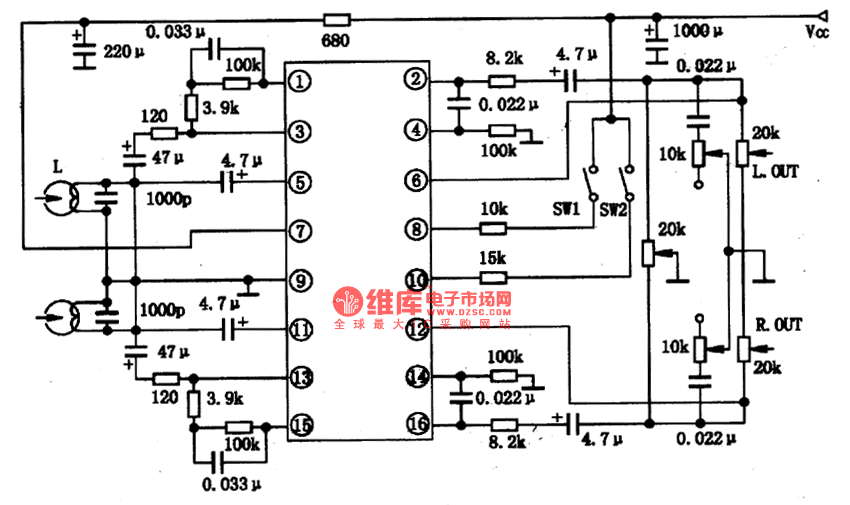

BA3406AL is an integrated dual preamplifier reproducing circuit produced by Toyo Power Tool Corp., Japan, which is used in recorders and music centers.the internal circuit and pin functions of BA3406AL1.The internal circuit of BA3406AL consists of two lines of pre-amplifiers, mute circuits and metal strap compensate circuits of same functions. Whose internal circuit and pin functions are shown in Figure 1. Figure 1 internal circuit and pin functions of BA3406AL2.Typical application circuit of BA3406ALThe working voltage of BA3406AL ranges 6-14V, typical application voltage is 8V.
