BA3506A-the integrated reproducing circuit of single door stereo

Published:2011/5/15 1:07:00 Author:Borg | Keyword: integrated reproducing circuit, single door | From:SeekIC

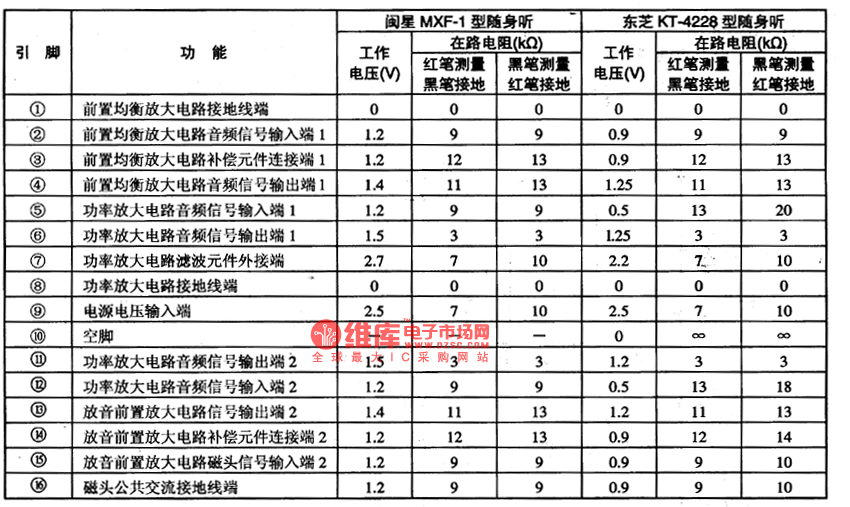

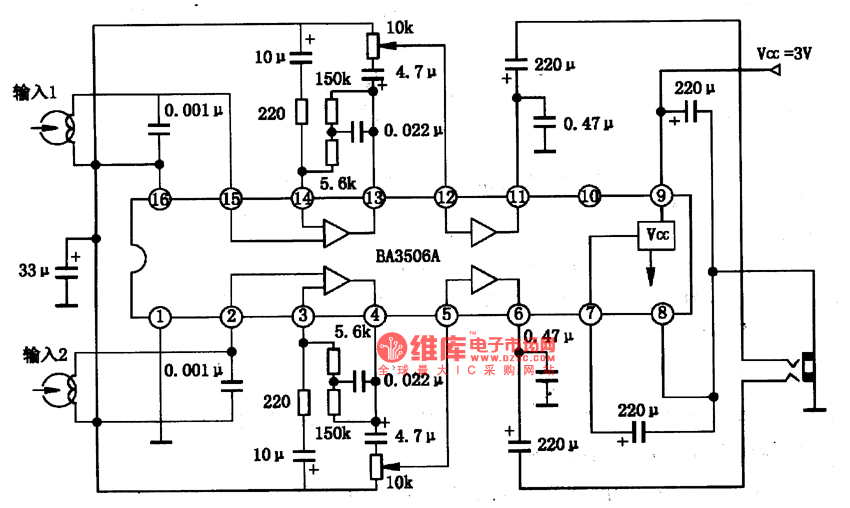

BA3506A is an integrated reproducing circuit of single door stereo produced by Toyo Power Tool Corp., Japan, which is used in walk-man and stereos of same type as reproducing circuit.1.the internal circuit and pin functions of BA3506ABA3506A consists of two preset balance amplifier circuits of same functions and power amplifier circuits, whose internal circuit is shown in Figure 1. The IC is in 16-lead dual in-line plastic package, whose pin functions and data are listed in Table 1.2.main parameters of BA3506A 3.Typical application circuit of BA3506A
