BA3519F-the integrated reproducing circuit of single door stereo

Published:2011/5/14 22:17:00 Author:Borg | Keyword: integrated reproducing circuit, single door stereo | From:SeekIC

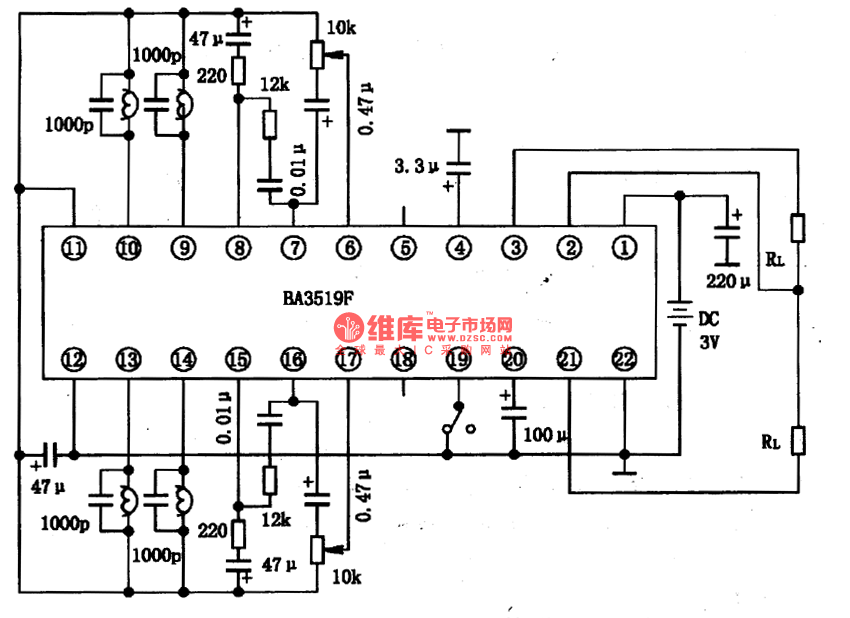

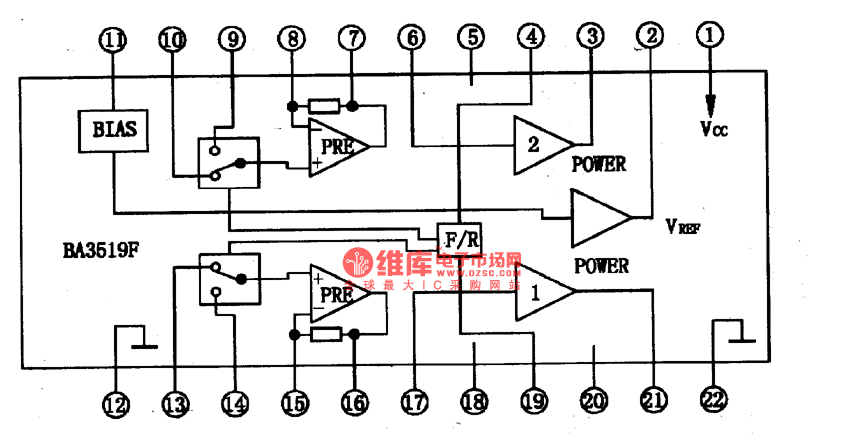

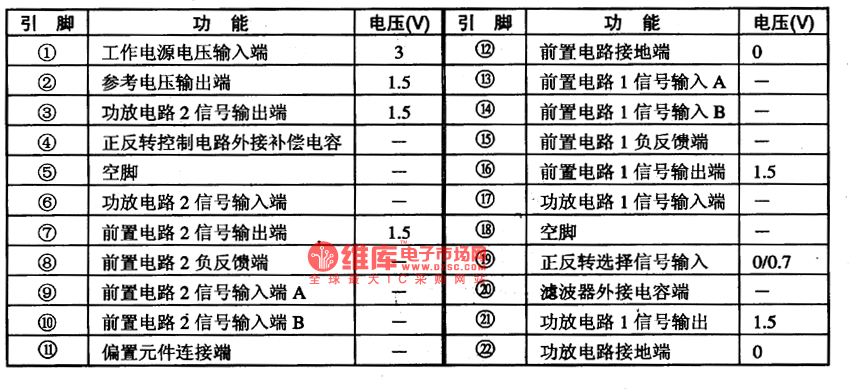

BA3519F is an integrated reproducing circuit of single door stereo produced by Toyo Corp., Japan, which is widely used in stereo monoplayers or portable radios.1.the internal circuit and pin functions of BA3519F BA3519F contains dual heads and dual amplifiers. In front of the dual heads, there are electronic switches converting the signals of two sides of cassettes, so the IC is often used in walk-man with the functions of auto reversing, such as Aiwa walk-man and so on.BA3519F is in flat 22-lead dual line package.
