BA5096-the integrated circuit of digital reverberation

Published:2011/5/13 21:47:00 Author:Borg | Keyword: integrated circuit, digital reverberation | From:SeekIC

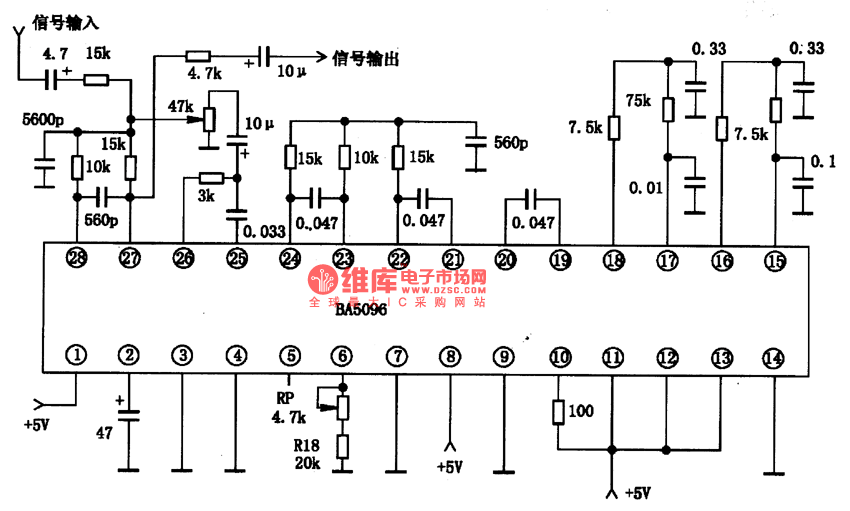

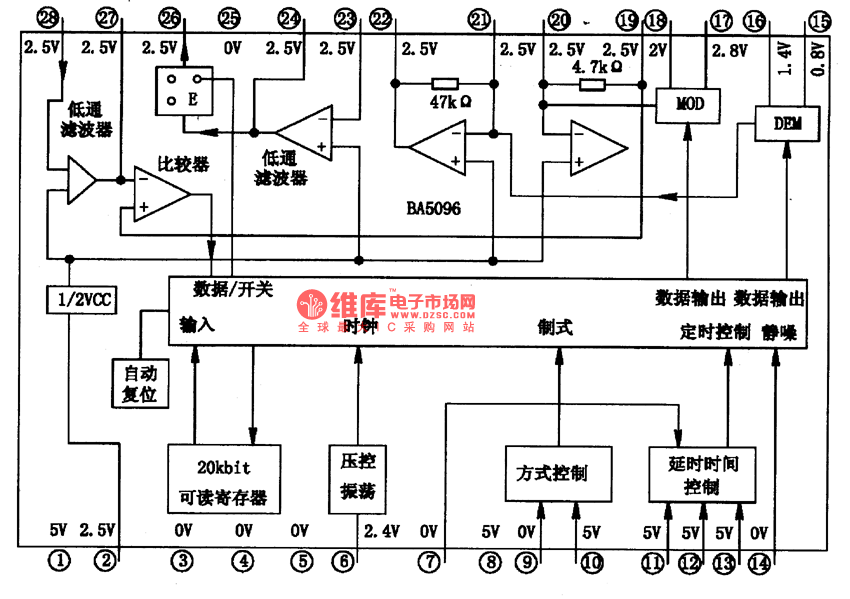

BA5096 is an integrated digital reverberation circuit of single door CMOS, which is commonly used in CD,VCD,DVD and all kinds of stereo system as processors of digital reverberation signals.1.The internal circuit and pin functions of BA5096BA5096 contains A/D converters and D/A converters. The delayed time is under the control of micro-processors. There is a VCO circuit that generates the clock in it , and the clock can be adjusted into a proper frequency. The IC is in 28-lead dual line package,whose pin functions and data are listed in Table 1.
