BANDPASS_AMPLIFIER

Published:2009/6/18 22:38:00 Author:May | From:SeekIC

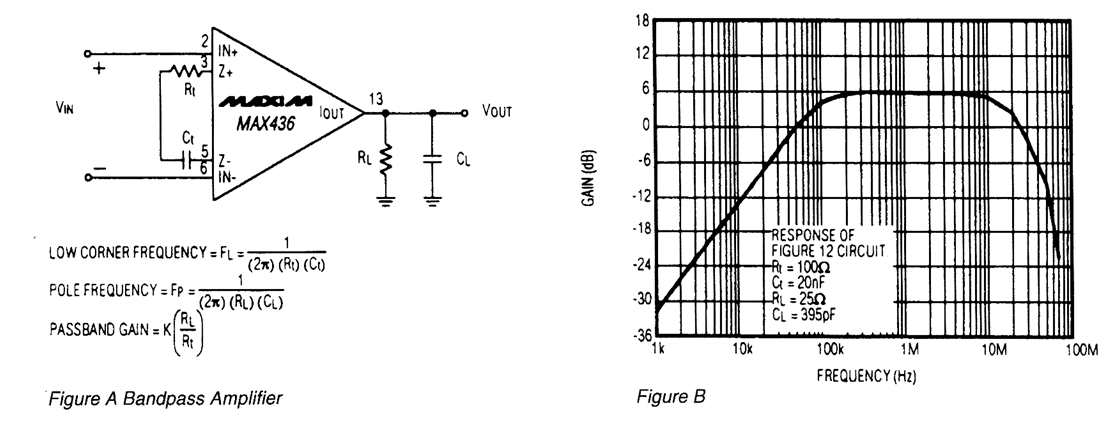

The circuit A is a bandpass amplifier，with the low corner frequency set by the impedance of the transconductance network，The high corner frequency IS set by the impedance ofthe RC network atthe amplifier output The passband gatn is (k）x (R1/RT)． Figure B is a plot ofthe circuit in Figure A，with Rt＝100Ω，Ct＝20nF，R1＝25Ω，and C1＝395pF．
