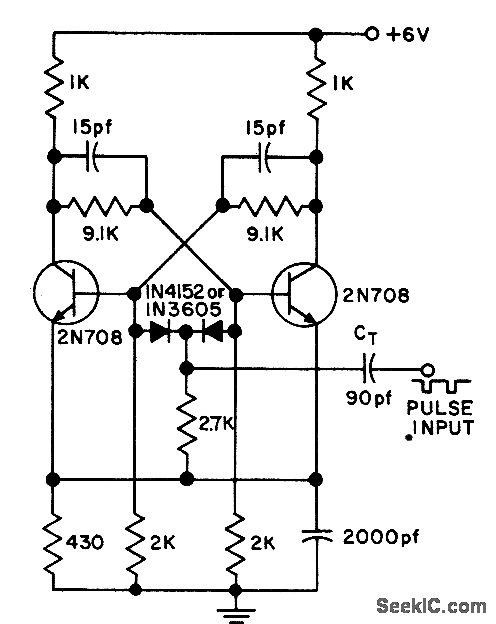

BASE_TRIGGERED_FLIP_FLOP

Published:2009/7/21 9:14:00 Author:Jessie | From:SeekIC

Maximum trigger rate for steering circuit exceeds 5 Mc with negative trigger pulse amplitude from 0.75 to 2 v. Requires less trigger energy than collector triggering but more accurately controlled trigger amplitude.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 197.
