BASIC_OP_AMP_CIRCUITS

Published:2009/6/22 23:21:00 Author:Jessie | From:SeekIC

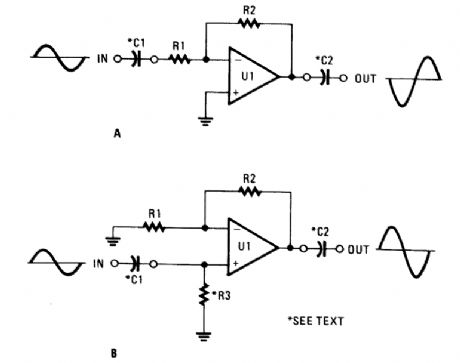

The two simplest op-amp configurations are the inverting (A) and the noninverting (B). Resistor R3 is needed only if C1 is used in the noninverting circuit.
