Published:2009/7/24 21:39:00 Author:Jessie | From:SeekIC

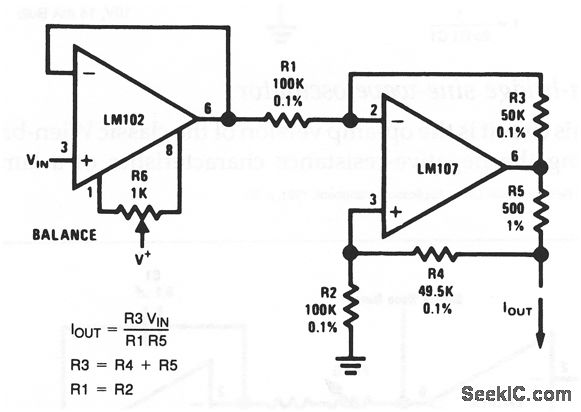

The current output of this circuit depends on the input voltage and the resistance ratios, as shown by the equations. Current output can be trimmed by R6.
