CF1456 series dual power universal single op amp circuit diagram

Published:2011/5/12 4:49:00 Author:Rebekka | Keyword: dual power, universal single op amp | From:SeekIC

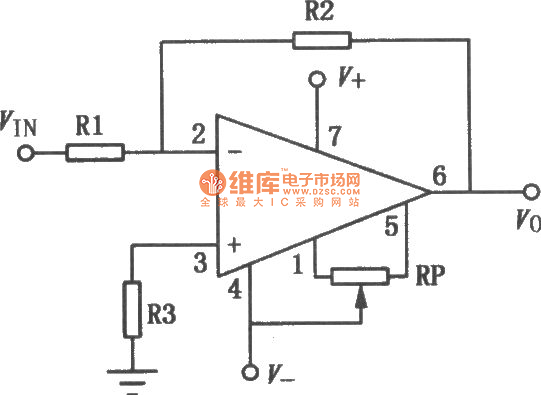

CF1456 series compensated operational amplifier is internal compensated op amp with high gain. Its input current is small, low power consumption, peripherals, zero side with short circuit protection and input over voltage protection. It can be used in summing amplifier, integrator. The similar or directly substitution models are CFl556MT, CF1456CT, CF1556MD, CF1456CD, CF1556MJ, CF1456CJ, CF1456CP and so on. The typical application circuit is shown as above.
