CLOSED_RING_COUNTER

Published:2009/7/23 22:04:00 Author:Jessie | From:SeekIC

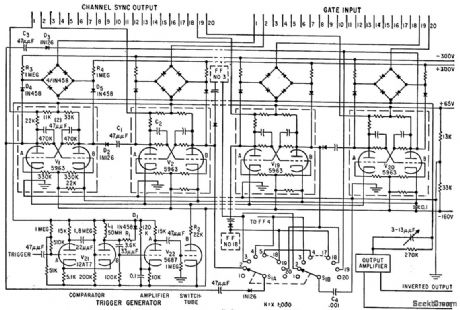

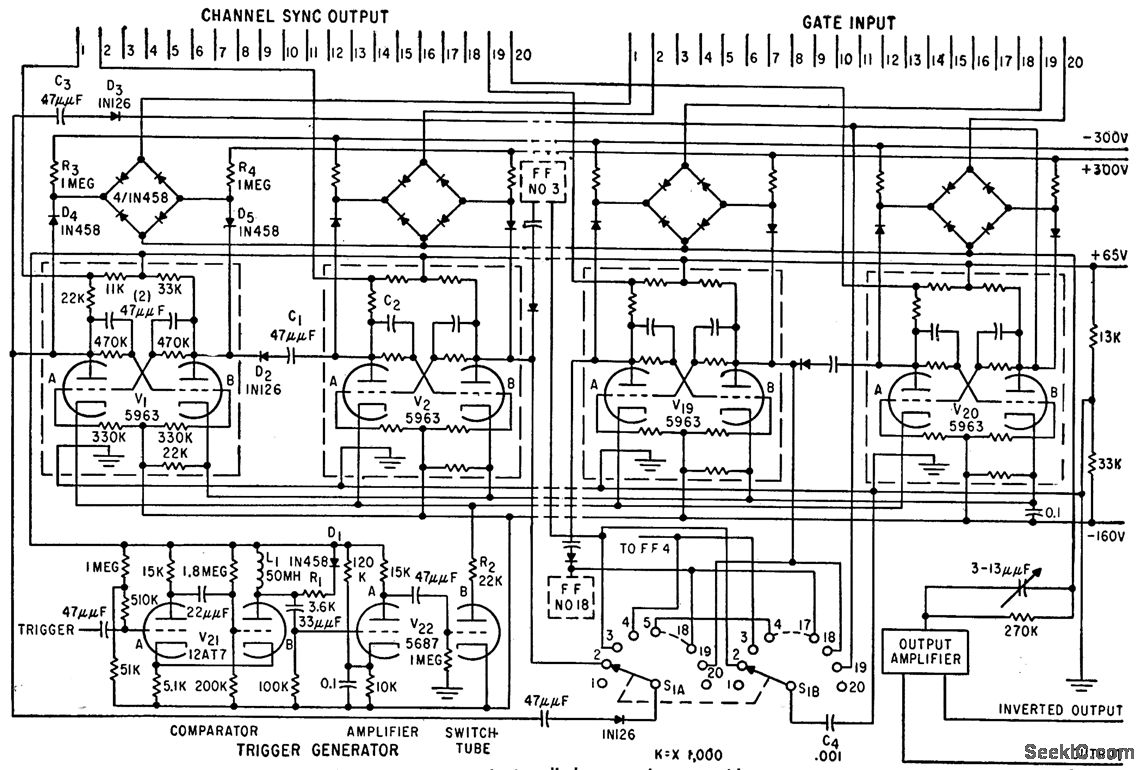

Serves as 20-channel electronic switch for sampling voltage sources at rates of up to 50,000 cps. Flip-flop ring actuates diode gates in step with trigger pulses. Output can be used to drive recorders or feed data processing equipment.-K. L. Bents and B. E. Bishop, High-Speed Multiplexing With Closed-Ring Counters, Electronics, 32-26, p 48-50.
