CONSTANT_CURRENT_MOTOR_DRIVE_CIRCUIT

Published:2009/6/25 23:07:00 Author:May | From:SeekIC

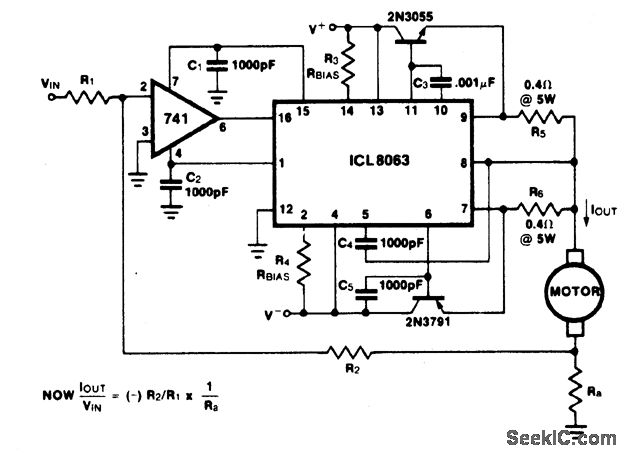

This minimum device circuit can be used to drive dc motors where there is some like lihood of stalling or lock up; if the motor locks, the current drive remains constant and the system does not destroy itself.
