Class-A Audio Amplifiers

Published:2013/3/25 3:25:00 Author:Ecco | Keyword: Class-A Audio Amplifier | From:SeekIC

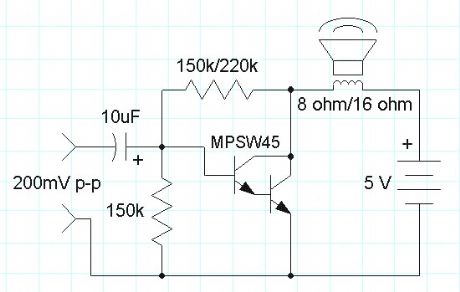

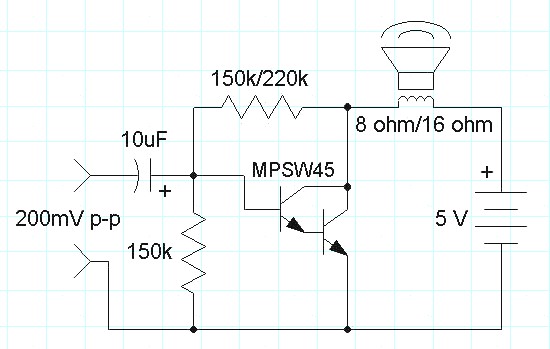

A class-A audio amplifier is pretty wasteful of power but when plenty of power is available the simplicity is attractive. Here is a simple darlington transistor example intended for use with a 5 volt power supply:
