Complete Surround System

Published:2012/10/25 2:42:00 Author:muriel | Keyword: Complete, Surround System | From:SeekIC

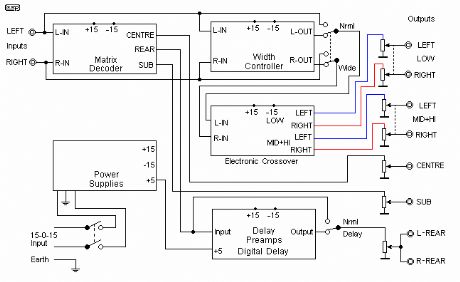

A complete surround system would consist of a power supply, the decoder matrix, optionally the stereo width controller, and the delay unit. Figure 3 shows my suggested method of interconnecting the units, which can all be housed in a single case. For the more adventurous, you can add a pair of Linkwitz-Riley crossovers for bi-amping (shown in the dotted box) for the front left and right speakers. This keeps everything together, and only the switches needs to be accessible in normal use. All level controls should be set to the desired volume, and not fiddled with once you have it the way you want. If these are accessible, everyone will want to fiddle, and you will then have to try to set it back to where you want - until someone else comes and fiddles again.
