Composed of MOSFETT symmetrical power amplifier circuit diagram

Published:2011/4/25 2:24:00 Author:Rebekka | Keyword: MOSFETT, symmetrical power amplifier | From:SeekIC

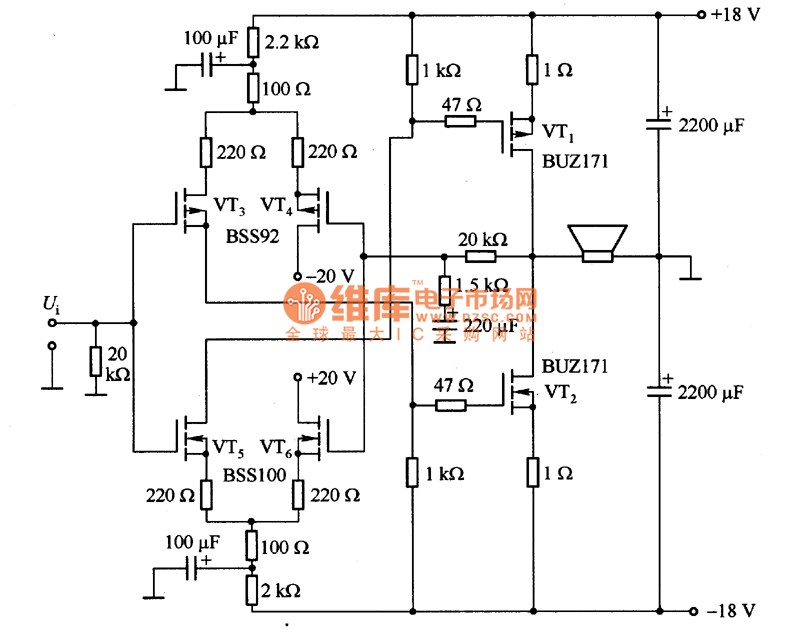

Figure 1 is symmetrical power amplifier circuit constituted by the MOSFETT. The circuit uses a single-ended input mode push-pull output Class A, the output power is lOW.
